Mono socket economy tower – Enter the world of servers

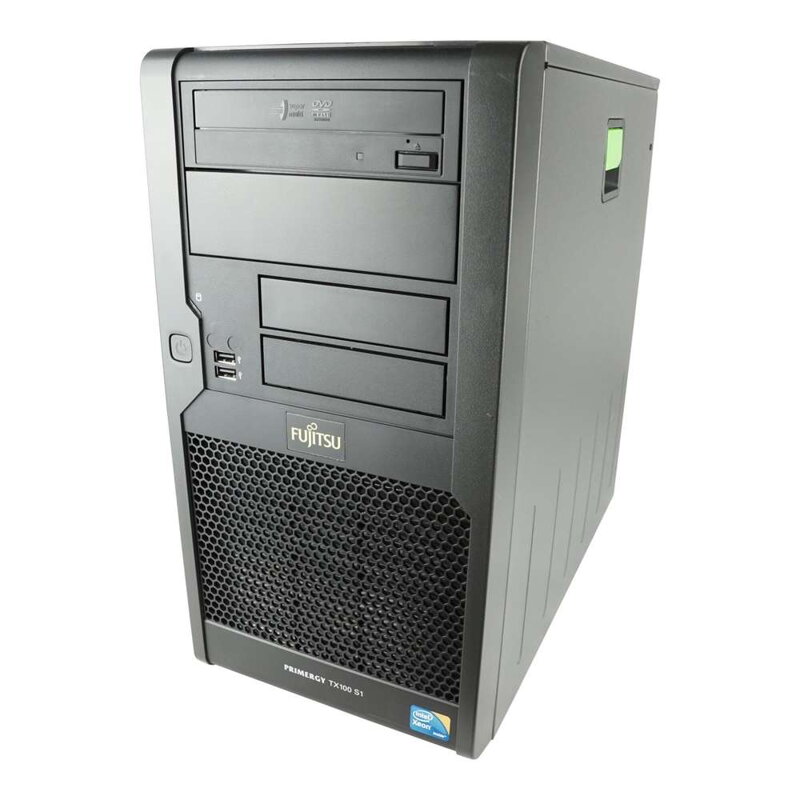

PRIMERGY TX industry standard tower servers: efficient, rock solid, record-breaking performance. PRIMERGY TX servers benefit from over 20 years pioneering work in the field of Green IT. That is how TX servers reach industry – leading performance per watt ratios, lowering the environmental impact and running costs. TX servers can easily be managed locally or remotely via the PRIMERGY ServerView Suite, saving IT admin costs. That's efficient performance. Our made-to-measure service packages take care of your system every step of the way. Rest assured, PRIMERGY TX servers are put through 5000 boot cycles – that's rock solid performance. PRIMERGY TX servers are flexible systems capable of using up to two processors and up to 20 hard disks. Tower to rack mounting kits are available to move to a consolidated rack infrastructure. TX servers have a tradition of setting record-breaking performance levels. So, whether you use them as tower or rack servers, for file, print or application purposes, you will benefit from record-breaking performance. PRIMERGY TX: a tower of strength.PRIMERGY TX100 S1The PRIMERGY TX100 S1 is your entry to the world of servers. It is the perfect system for SMEs looking to centralize their IT infrastructure, and offers a great price-performance ratio. Moreover, the TX100 S1 is very silent and energy efficient making it an excellent choice for any office environment. The 85% efficient power supply unit minimizes costs, as well as the environmental impact. The use of data security features such as ECC memory and RAID 0/1 ensures around-the-clock reliability. Finally, the TX100 S1 offers a choice of Intel® processors suited to the needs of SMEs. Step into the world of PRIMERGY servers.MAIn FEATuRESBEnEFITSGreat price-performance ratioWith a choice of processors (from Intel® Pentium® to Intel Xeon®) and budget options to choose from, the PRIMER-GY TX100 S1 offers an excellent price-performance ratioHigh energy efficiency with 85% efficiency power supply unit (PSu), EPA 5.0 compliantBenefit from Fujitsu's pioneering experience in Green IT – save money and minimize environmental impactLow noise levelsEffective hardware design air flow ensures a silent system for an efficient working environment. Server reliability thanks to the use of components such as Intel 3200 server chipset, ECC memory and RAID 0/1 Keep business processes going – 24×7 FlexibilityAvailable with two different base units with either a maximum of either 2 or 4 hard disks.
Technical detailsBase unit namePRIMERGY TX100 S1 2 HDDPRIMERGY TX100 S1 4 HDDHard disk architecture2 HDD4 HDDMainboardMainboard typeD 2679ChipsetIntel® 3200 + ICH9RProcessor quantity and type1 x Intel® Pentium® Dual-Core processor / Intel® Core™2 Duo / Intel® Xeon® processor 3000 / 3100 / 3200 / 3300 seriesProcessor optionsIntel® Core™2 Duo E7300 (2C, 2.66 GHz, SLC: 3 MB , TLC: – , 1066 MHz, 65 W)Intel® Core™2 Duo E7400 (2C, 2.8 GHz, SLC: 3 MB , TLC: – , 1066 MHz, 65 W)Intel® Pentium® E5200 (2C, 2.5 GHz, SLC: 2 MB , TLC: – , 800 MHz, 65 W)Intel® Xeon® E3110 (2C, 3.00 GHz, SLC: 6 MB , TLC: – , 1333 MHz, 65 W)Intel® Xeon® E3120 (2C, 3.16 GHz, SLC: 6 MB , TLC: – , 1333 MHz, 65 W)Intel® Xeon® X3220 (4C, 2.40 GHz, SLC: 8 MB , TLC: – , 1066 MHz, 95 W)Intel® Xeon® X3330 (4C, 2.66 GHz, SLC: 6 MB , TLC: – , 1333 MHz, 95 W)Memory slots4 Memory slot typeDIMM (DDR2)Memory capacity (min. – max.)1 GB – 8 GBMemory protectionECCMemory notesMix and match possible, with dual channel operation better performance (2 modules with equal capacity necessary). Single channel (1 module) configuration possible.Memory options4 GB (1 module(s) with 4 GB) DDR2, unbuffered, ECC, 800 MHz, PC2-64002 GB (1 module(s) with 2 GB) DDR2, 800 MHz, PC2-64001 GB (1 module(s) with 1 GB) DDR2, 800 MHz, PC2-6400InterfacesuSB ports10 (2 x front, 6 x back, 2 x internal)Serial 1 (9-pin)1 x RS232Parallel (25-pin)1 x ECP / EPP parallel port (25 pin) – optionalMouse / Keyboard (PS/2)2LAn / Ethernet (RJ-45)1 x Gbit/s EthernetI/O controller on boardSerial ATA total6RAID Controller4 port SATA with RAID 0/1for HDD ́sSATA ControllerSATA2 (3GBit)LAn ControllerIntel® nineveh 82566DM, 10/100/1000 Mbit/s Ethernet, PXE-Boot by LAn via PXE-Server, Teaming supportedTrusted Platform Module (TPM)Infineon / 1.2 (option)SlotsPCI-Express x81 x PCI-Express x4 (mech. x8)1 x PCI-Express x11 x PCI slots1 x Drive baysHard disk bay configurationFrom 2 to 4 bays not upgradeable in the field.notes accessible drives1 bay occupied by DVD/DVD-RW 1x 3.5/1-inch FD as optionnumber of fansFan configurationsilent system fansFan notesnon hot plugOperating panelOperating buttonsOn/off switchStatus LEDsPower (green)
Operating systemSupported operating systemsMicrosoft® Windows Server® 2008Microsoft® Windows Server® 2003novell SuSE Linux Enterprise ServerRed Hat Enterprise Linuxnote: Support of other Linux derivatives on demandOperating system release linkhttp://ts.fujitsu.com/softwarehttp://docs.ts.fujitsu.com/dl.aspx?id=a9e600b9-e4cb-4f48-aa41-632f69058421Server ManagementStandardServerView Installation ManagerServer Management notesRegarding Operating System dependencies and product details for ServerView Suite Software Products see dedicated Product Data sheets.Dimensions / WeightFloor-stand (W x D x H)203 x 386 x 390 mmWeight12 kgFloor-stand (W x D x H)Rack (W x D x H)Environmentalnoise emissionAccording to ISO9296Sound pressure (LpAm)21 dB(A) (idle)/ 25 dB(A) (operating)Sound power (LWAd; 1B = 10dB)3.7B (idle) / 4.0B (operating)Operating ambient temperature10 – 35°COperating temperature noteETSI 300 019-2-3 Class 3.1Electrical valuesPower supply configuration1Standard power supply output300 WRated voltage range100 – 127 V / 200 – 240 VRated frequency range50 – 60 HzRated current max.100 V – 240 V / 3.5 A – 1.5 A Rated current in basic configuration100 – 240 V / 1,5 – 0,6 AActive power max. (per system unit)146 WApparent power max. (per system unit)63 VA – 156 VAHeat emission525.6 kJ/h (498.3 BTu)ComplianceGermanyGSEuropeCEuSA/CanadaCSAc/usuLc/usFCC Class AGlobalCBRoHS (Restriction of hazardous substances)WEEE (Waste electrical and electronical equipment)Compliance notesThere is general compliance with the safety requirements of all European countries and north America. national approvals required in order to satisfy statutory regulations or for other reasons can be applied for on request.Compliance linkhttps://sp.ts.fujitsu.com/sites/certificates/default.aspxComponentsHard disk drivesSATA, 1000 GB, 7200 rpm, 3.5-inchSATA, 750 GB, 7200 rpm, 3.5-inchSATA, 500 GB, 7200 rpm, 3.5-inchSATA, 250 GB, 7200 rpm, 3.5-inchSATA, 160 GB, 7200 rpm 3.5-inchHard disk notesPRIMERGY TX100 S1 hard disks are not hot-plug.
Tape DrivesDDS Gen5, 36 GB , 3 MB/s, half height, uSB 2.0DDS Gen6, 80 GB , 6 MB/s, half height, uSB 2.0RDX Drive, 80 GB, 160 GB, 320 GB , 25 MB/s, half height, uSB 2.0Optical drivesBlu-ray combo drive, (6x BD-ROM; 16x DVD; 40x CD), half height, SATA IDVD-ROM, (16xDVD; 48xCD), half height, SATA IDVD Super Multi, (16xDVD, 8xDVD+RW 6xDVD-RW, 12xDVD-RAM; 48xCD, 32xCD-RW), half height, SATA ILAN ControllerEthernet Ctrl 1 x 1 Gb Intel® Gigabit CT Desktop Adapter (requires RHEL 4.8 or higher)Ethernet Ctrl 1 x 1 Gb Intel® PRO/1000 PT Server AdapterEthernet Ctrl 2 x 1 Gb Intel® PRO/1000 PT Dual Port Server Adapter
