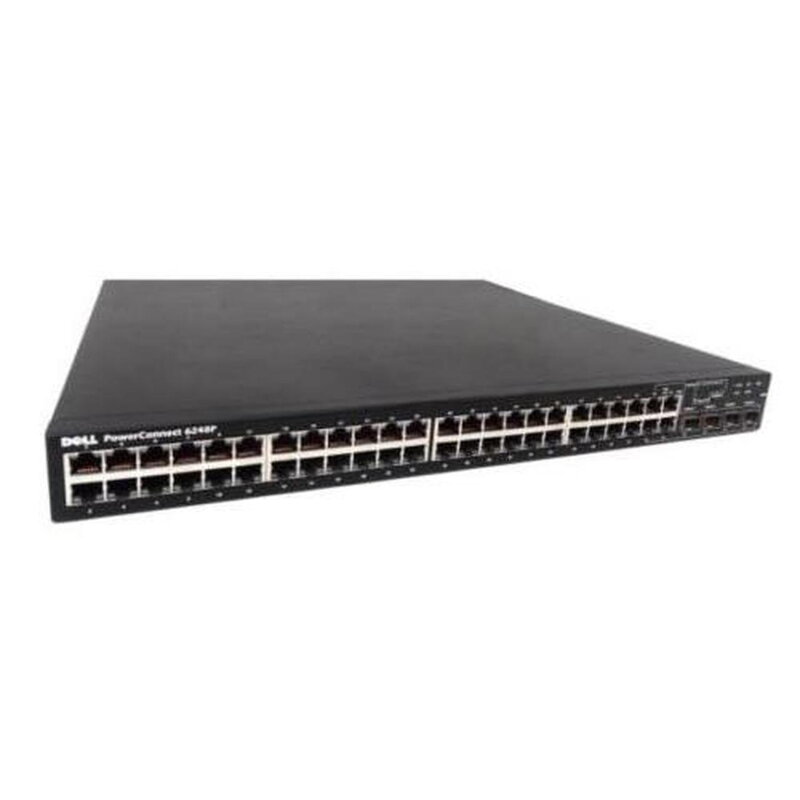

Dell PowerConnect 6248P

Device Type
Switch – 48 ports – L3 – managed – stackable
Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000 + 4 x combo SFP
Power Over Ethernet (PoE)
PoE
Max Units In A Stack
12
Authentication Method
RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
RAM
256 MB SDRAM
Flash Memory
32 MB
Enclosure Type
Rack-mountable 1U
MAC Address Table Size
8K entries
Max Units In A Stack
12
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Power Over Ethernet (PoE)
PoE
Encryption Algorithm
SSL
Routing Protocol
OSPF, RIP-1, RIP-2, IGMPv2, DVMRP, VRRP, OSPFv2, OSPFv3
Manufacturer
Dell, Inc.
Camera
Installed Size
32 MB
Power Device
Nominal Voltage
AC 120/230 V
Frequency Required
50/60 Hz
Type
internal power supply
Networking
MAC Address Table Size
8K entries
Subcategory
network hubs and switches
Subtype
Gigabit Ethernet
Form Factor
rack-mountable
Type
switch
Stackable
stackable
Max Units In A Stack
12
Advanced Switching
Layer 3
Features
ARP support, Access Control List (ACL) support, Broadcast Storm Control, DHCP relay, DHCP snooping, DHCP support, Dynamic VLAN Support (GVRP), Quality of Service (QoS), SSH support, Syslog support, Trivial File Transfer Protocol (TFTP) support, VLAN support, Virtual Route Redundancy Protocol (VRRP) support, Weighted Round Robin (WRR) queuing, auto-negotiation, auto-sensing per device, auto-uplink (auto MDI/MDI-X), flow control, full duplex mode, port mirroring, power over Ethernet (PoE)
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ak, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ports Qty
48
Manageable
Yes
Routing Protocol
DVMRP, IGMPv2, OSPF, OSPFv2, OSPFv3, RIP-1, RIP-2, VRRP
Remote Management Protocol
CLI, HTTP, HTTPS, RMON, SNMP, SNMP 1, SNMP 2c, SNMP 3, SSH, TFTP, Telnet
Power Over Ethernet (PoE)
PoE
Miscellaneous
Rack Mounting Kit
included
Encryption Algorithm
SSL
Height (Rack Units)
1 m
Interface Provided
Interface
Ethernet 10Base-T/100Base-TX/1000Base-T
Qty
1, 4, 48
Connector Type
RJ-45, SFP (mini-GBIC)
Comments
management
RAM
Installed Size
256 MB
Technology
SDRAM
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
113 °F
Humidity Range Operating
10 – 90% (non-condensing)
Header
Brand
Dell
Product Line
Dell PowerConnect
Model
6248P
Packaged Quantity
1
Compatibility
PC
Dimensions & Weight
Width
17.3 in
Depth
15.2 in
Height
1.7 in
Weight
13.45 lbs
Ports
Type
10/100/1000
Qty
48
Ports (2nd)
Type
combo SFP
Qty
4
Service & Support
Type
limited lifetime warranty
Service & Support Details
Type
limited warranty
Full Contract Period
lifetime
General
Manufacturer
Dell, Inc.
