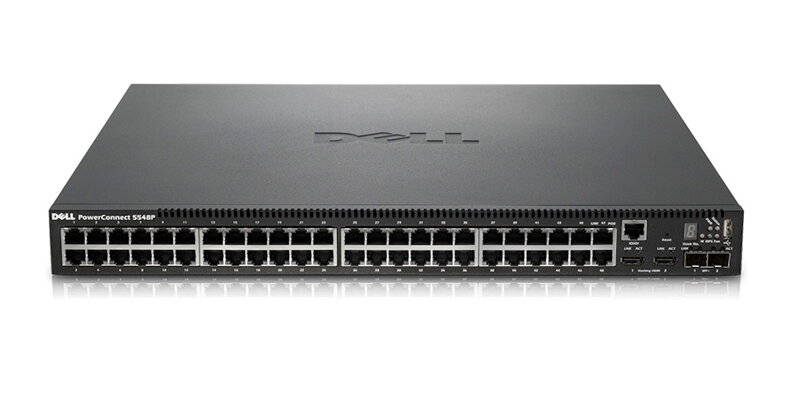

Dell PowerConnect 5548P

Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000 (PoE) + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE
Capacity
MAC addresses: 16000
Virtual interfaces (VLANs): 4000
QoS hardware queues: 8
IGMP snooping entries: 256
ACL: 3000
ACL entries: 3000
Authentication Method
RADIUS, TACACS+
RAM
1 GB SDRAM
Flash Memory
16 MB
MAC Address Table Size
16K entries
Authentication Method
RADIUS, TACACS+
Power Over Ethernet (PoE)
PoE
Encryption Algorithm
SSL 3.0
Manufacturer
Dell, Inc.
Camera
Installed Size
16 MB
Power Device
Nominal Voltage
AC 120/230 V
Frequency Required
50/60 Hz
Type
internal power supply
Networking
MAC Address Table Size
16K entries
Subcategory
network hubs and switches
Subtype
Gigabit Ethernet
Form Factor
desktop, rack-mountable
Type
Switch
Stackable
stackable
Features
Access Control List (ACL) support, BOOTP support, Broadcast Storm Control, DHCP support, IGMP snooping, IP address filtering, IPv4 support, IPv6 support, Jumbo Frames support, LACP support, Management Information Base (MIB), Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, SNTP support, Spanning Tree Protocol (STP) support, Syslog support, VLAN support, Virtual Cable Test (VCT) technology, Weighted Random Early Detection (WRED), Weighted Round Robin (WRR) queuing, auto-negotiation, auto-uplink (auto MDI/MDI-X), layer 2 switching, layer 3 switching, port mirroring, power over Ethernet (PoE), sFlow
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ports Qty
48
Manageable
Yes
Remote Management Protocol
CLI, HTTP, HTTPS, RMON, SNMP 1, SNMP 2c, SSH, SSH-2, TFTP, Telnet
Power Over Ethernet (PoE)
PoE
Miscellaneous
Encryption Algorithm
SSL 3.0
Height (Rack Units)
1 m
Interface Provided
Interface
10Gb Ethernet, Ethernet 10Base-T/100Base-TX/1000Base-T
Qty
1, 2, 48
Connector Type
RJ-45, SFP+
Comments
PoE
RAM
Installed Size
1 GB
Technology
SDRAM
Environmental Parameters
Humidity Range Storage
10 – 95% (non-condensing)
Min Storage Temperature
-4 °F
Max Storage Temperature
158 °F
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
10 – 90% (non-condensing)
Header
Brand
Dell
Product Line
Dell PowerConnect
Model
5548P
Packaged Quantity
1
Compatibility
PC
Dimensions & Weight
Width
17.3 in
Depth
15 in
Height
1.7 in
Weight
13.45 lbs
Ports
Type
10/100/1000 (PoE)
Qty
48
Ports (2nd)
Type
10 Gigabit SFP+
Qty
2
Performance
Type
forwarding performance, switching capacity
Value
100.2 Mpps, 176 Gbps
Capacity
Type
ACL, ACL entries, IGMP snooping entries, MAC addresses, QoS hardware queues, virtual interfaces (VLANs)
Value
16000, 256, 3000, 4000, 8
General
Manufacturer
Dell, Inc.
