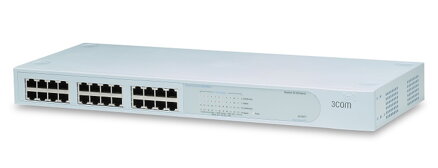

The 3Com Baseline 10/100 Switch 24-Port is an unmanaged, nonblocking switch designed for small to midsize offices. This rack mountable, business-class switch can be installed in a wiring closet or as a free-standing unit. The switch comes preconfigured for fast, easy installation using economical copper wiring. Auto-negotiation adjusts the port speed to match the communicating device. Any of the switch's 24 ports can deliver 10BASE-T Ethernet for users with average bandwidth requirements, or 100BASE-TX Fast Ethernet for power users or those with newer network connections.
Manufactured by: 3COM
Model/Part : 3C16471
Product Type: Switch
Enclosure Type: Rack-mountable
Built-in Devices: LED panel
Networking Ports Qty: 24 x Ethernet 10Base-T, Ethernet 100Base-TX
Data Transfer Rate: 100 Mbps
Data Link Protocol: Ethernet, Fast Ethernet
Connectivity Technology: Wired
Communication Mode: Half-duplex, full-duplex
Switching Protocol: Ethernet
MAC Address Table Size: 4K entries
Status Indicators: Port status, link activity, port transmission speed, port duplex mode, power, test mode
Features: Full duplex capability, auto-sensing per device, auto-negotiation
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.3x
Interfaces: 24 x network – Ethernet 10Base-T/100Base-TX – RJ-45
EPA Energy Star Compliant: Yes
Power Device: Power supply
Voltage Required: AC 100/240 V ( 50/60 Hz )
Power Consumption Operational: 88 Watt
Compliant Standards: UL 1950, EN 60950
Width: 17.3 in
Depth: 9.3 in
Height: 1.7 in
Weight: 5.7 lbs
