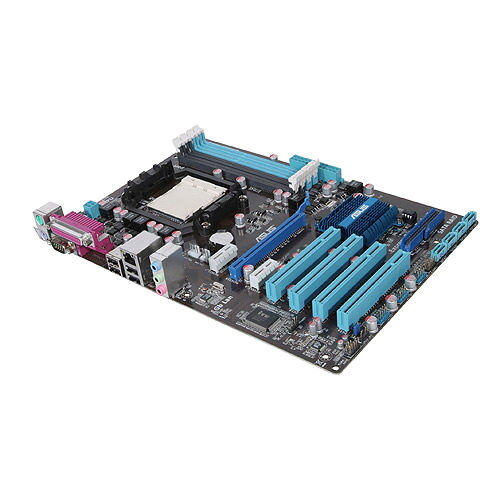

ASUS M4N68T mainboard, Socket AM3

Specs
General

Chipset Type
NVIDIA GeForce 7025 / nForce 630a
Compatible Processors
Sempron, Phenom II X3, Athlon II X2, Phenom II X2, Athlon II X4, Athlon II X3, Phenom II X4
Processor Socket
Socket AM3
Max Bus Speed
2000 MHz
Max Processors Qty
1
Manufacturer
Asus

Processor

Max Supported Qty
1
Installed Qty
0

Expansion / Connectivity

Expansion Slots
1 x CPU
2 x DIMM 240-pin
1 x PCIe x16
1 x PCIe x1
2 x PCI
Storage Interfaces
SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 / JBOD
ATA-133 -connectors: 1 x 40pin IDC - 1 devices
Additional Connectors (Optional)
6 x USB 2.0
Power Connectors
4-pin ATX12V connector, 24-pin main power connector

Miscellaneous

Microsoft Certifications
Compatible with Windows 7
Product Type
motherboard
Compatible with Windows 7
"Compatible with Windows 7" software and devices carry Microsoft's assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.

Audio

Audio Codec
VIA VT1708S
Compliant Standards
High Definition Audio

Memory

Memory Allocation Technology
shared video memory (UMA)
Max Allocated RAM Size
256 MB

Cache Memory

Type
none

Processor / Memory / Storage

Max Supported Qty
1

Interface Provided

Qty
1, 4
Type
LAN, PS/2 keyboard, PS/2 mouse, TOSLINK, USB 2.0, VGA, audio line-out, audio line-out (center/subwoofer)/microphone, audio line-out (rear)/line-in, serial
Connector Type
mini-jack

Networking

Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Network
Gigabit Ethernet

Video

Video Output
graphics adapter
Graphics Processor
NVIDIA GeForce 7025

Audio Output

Sound Output Mode
7.1 channel surround
Compliant Standards
High Definition Audio
Type
sound card
Audio Codec
VIA VT1708S
Audio
High Definition Audio (8-channel)

RAM

Max Supported Size
8 GB
Features
dual channel memory architecture

Graphics

Max Allocated RAM Size
256 MB
Graphics Controller
NVIDIA GeForce 7025
Memory Allocation Technology
Shared video memory (UMA)

LAN

Network Interfaces
Gigabit Ethernet

Supported RAM

Bus Clock
1333 MHz, 1066 MHz
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture
Speed
PC3-10600, PC3-8500
Technology
DDR3
Max Size
8 GB
Supported RAM Integrity Check
Non-ECC, ECC

Header

Brand
ASUS
Product Line
ASUS
Model
M4N68T-M
Packaged Quantity
1
Compatibility
PC

Mainboard

Form Factor
micro ATX
Processor Socket
Socket AM3
Compatible Processors
Athlon II X2, Athlon II X3, Athlon II X4, Phenom II X2, Phenom II X3, Phenom II X4, Sempron
Data Bus Speed
2000 MHz
Chipset Type
NVIDIA GeForce 7025 / nForce 630a
Supported RAM Technology
DDR3 SDRAM
Supported RAM Speed
1066 MHz, 1333 MHz
Supported RAM Standard
PC3-10600, PC3-8500
Supported RAM Integrity Check
ECC, non-ECC
Supported RAM (Registered or Buffered)
unbuffered
RAM Slots
2 DIMM slots
Power Connectors
24-pin main power connector, 4-pin ATX12V connector

Mainboard Features

BIOS Type
AMI
BIOS Features
ACPI support, ASUS EZ Flash 2, ASUS MyLogo2, DMI 2.0 support, SMBIOS 2.5 support, WfM 2.0 support
Hardware Features
AMD Cool 'n' Quiet Technology, ASUS AI NET2, ASUS Anti-Surge Protection, ASUS EPU-4 Engine, ASUS Express Gate, ASUS Q-Fan, ASUS Stepless Frequency Selection (SFS), ASUS Turbo Key, C.P.R. (CPU Parameter Recall), CrashFree BIOS 3

Interfaces

Storage
ATA-133, Serial ATA-300 (RAID)

Cable Details

Type
IDE cable, Serial ATA cable
Included Qty
1, 2

Expansion Slots

Total Qty
1, 2
Type
CPU, DIMM 240-pin, PCI, PCIe x1, PCIe x16

Software

Software Included
ASUS Live Update, ASUS PC Probe 2, drivers & utilities

Dimensions & Weight

Width
9.6 in
Depth
8.2 in

Video Memory

Memory Allocation Technology
shared video memory (UMA)
Max Allocated RAM Size
256 MB

Storage Interfaces

Interface
ATA-133, Serial ATA-300
Connector(s)
1 x 40pin IDC, 4 x 7pin Serial ATA
Supported Devices Qty
1, 4
RAID (Level)
RAID 0 / RAID 1 / RAID 10 / RAID 5 / JBOD

Features

BIOS Type
AMI
Hardware Features
ASUS Q-Fan, C.P.R. (CPU Parameter Recall), AMD Cool 'n' Quiet Technology, ASUS Anti-Surge Protection, ASUS Turbo Key, CrashFree BIOS 3, ASUS AI NET2, ASUS Stepless Frequency Selection (SFS), ASUS Express Gate, ASUS EPU-4 Engine
BIOS Features
ACPI support, DMI 2.0 support, WfM 2.0 support, ASUS MyLogo2, ASUS EZ Flash 2, SMBIOS 2.5 support

General

Manufacturer
Asus
