Sunix MIO5469A Ver 2.0

DP/N 0GP385

Expands 1-port RS-232 COM and 1-port IEEE1284 LPT on system.
Designed to meet PCI Express Base Specification Revision 1.1.
High reliability SUNIX SUN1989 16C950 compatible Multi-IO controller on-board.
Expands one RS-232 serial port with communication speed up to 115.2Kbps.
On-chip hardware auto flow control to guarantee no data loss.
Built-in ±2KV ESD protection for all serial signals.
Support IEEE 1284-1994 parallel port standard
* ECP(Enhance Capacity Port) / EPP(Enhance Parallel Port)
* SPP(Standard Parallel Port) / BPP(Bi-direction Parallel Port)
Auto-switching between ECP/EPP/SPP/BPP modes without configuration.
Plug-n-Play, I/O address and IRQ assigned by system.
Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
Support Microsoft Windows, Linux, and DOS.

Specifications
Description

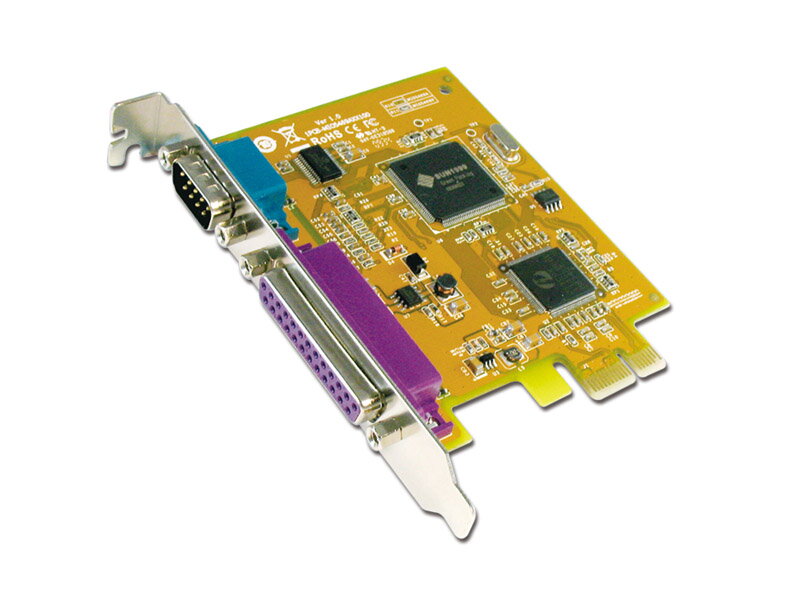

Product Description 1-port RS-232 & 1-port Parallel PCI Express Multi-I/O Board
General
Interface RS-232 and IEEE1284
Controller SUNIX SUN1989 (16C950 UART Compatible)
Bus PCI Express one lane (x1)
IRQ & IO Assigned by System
Serial Communication
Interface RS-232
No. of Port 1-port
FIFO 128 byte (Hardware)
Signal TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI
Baud rate 50 bps to 115.2 Kbps
Data bit 5,6,7,8
Stop bit 1,1.5,2
Parity None, Even, Odd, Space, Mark
Flow Control None, Xon/Xoff, RTS/CTS
Protection ±2KV ESD protection for each signal Human Body Model (HBM)
PCB connector DB9 Male
Parallel Communication
Interface IEEE1284
No. of Port 1-port
FIFO 16 byte (Hardware)
Signal SPP/ECP/EPP/BPP
Speed Maximum 1.8MBps
PCB connector DB25 Female
Driver Support
Windows Client XP/Vista/7/8/8.1 (X86/X64)
Windows Server 2003 / 2008 / 2012 / 2016 (X64)
Windows Embedded Windows XP Embedded / POSReady 2009 / POSReady / Embedded System 2009
Linux 2.x / 3.x / 4.x
DOS
Regulatory Approvals
Hardware EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, RoHS
Software Microsoft WHQL Windows
• Windows Client: XP/Vista/7/8/8.1 (X86/X64)
• Windows Server: 2003 / 2008 / 2012 / 2016 (X64)
Environment
Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)
Dimension
PCB Dimension 78 x 99 mm
Bracket Standard 121 mm
Bracket Space 1

Note:
* Do not support LPT Key Locker Parallel device.
* LPT port does not support legacy 278/378 ISA address under Windows nor Linux operation systems, but only DOS mode.
* ECP / EPP / SPP / BPP modes work under Windows, and Linux driver only supports SPP mode.
