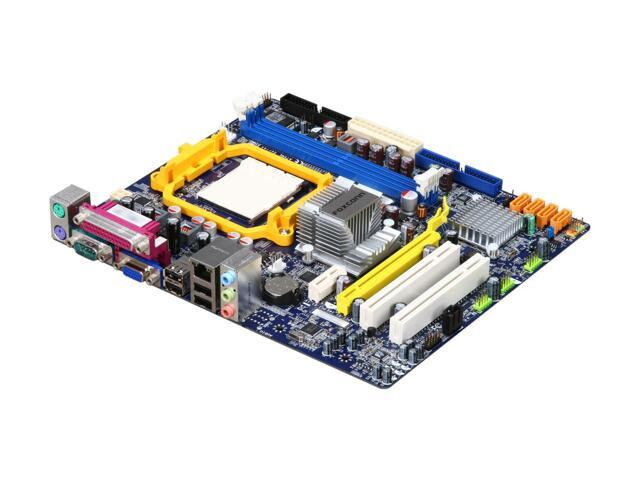

Foxconn A76ML-K mainboard

Processor AMD Phenom™II, Phenom™x4, Phenom™ x3, Athlon™ , Sempron™ processors, Socket AM3 and AM2+
Chipset AMD® 760G + SB710
Front Side Bus 5.2 GT/s HyperTransport™
Memory Dual channel DDR2 1066/800/667 x 2 DIMMs, Max. 8GB
VGA on Die ATI® Radeon™ 3000
Expansion Slots 1* PCIe2.0 x16, 1* PCIe2.0 x1, 2* PCI slots
IDE 1* ATA133
Serial ATA(SATA)/RAID 4* SATAII w / RAID 0, 1, 10
Audio 5.1 channel HDA by VIA® VT1708B
LAN Gigabit LAN by Realtek® RTL8111D
IEEE1394 N/A
Back Panel I/O Ports 1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x VGA port
1 x Printer port
1 x Audio jack supports 3 jacks
1 x Serial port
4 x USB 2.0 ports
1 x RJ45 LAN jack
Internal I/O Connectors 1 x ATX 24-pin power connector
1 x 4-pin ATX 12V power connector
2 x 4-pin CPU/System Fan connectors
1 x Floppy connector
1 x CD-in connector
1 x Front Audio header
1 x Front Panel header
3 x USB 2.0 connectors support additional 6 ports
4 x SATAII connectors
1 x TPM header
1 x ATA133 IDE connector
1 x Intrusion Alarm header
1 x Speaker header
1 x IrDA header
BIOS Features 8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM,
Standards/Manageability PCI 2.3, USB2.0, DMI 2.5
Special Features
Form Factor uATX (9.6" x 8.2")
