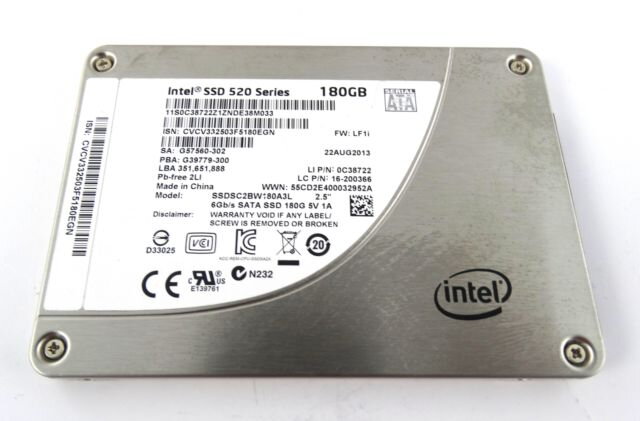

Intel SSD 520 Series, 180GB 2.5in SATA 6Gb/s 25nm MLC

Essentials

Product Collection Intel® SSD 520 Series
Code Name Products formerly Cherryville
Capacity 180 GB
Status Discontinued
Launch Date Q1'12
Lithography Type 25 nm
Recommended Customer Price N/A

Performance

Sequential Read (up to) 550 MB/s
Sequential Write (up to) 520 MB/s
Random Read (8GB Span) (up to) 50000 IOPS
Random Write (8GB Span) (up to) 60000 IOPS
Latency - Read 80 µs
Latency - Write 85 µs
Power - Active 850 mW (MobileMark 2007 Workload)
Power - Idle 600 mW (DIPM)

Reliability

Vibration - Operating 2.17 GRMS (5-700 Hz)
Vibration - Non-Operating 3.13 GRMS (5-800 Hz)
Shock (Operating and Non-Operating) 1,500 G/.5 msec
Operating Temperature Range 0°C to 70°C
Mean Time Between Failures (MTBF) 1,200,000 Hours
Uncorrectable Bit Error Rate (UBER) 1 sector per 1016
Package Specifications

Components Intel NAND Flash Memory Multi-Level Cell (MLC) Technology
Weight Up to 78 grams
Form Factor 2.5" 7mm
Interface SATA 3.0 6Gb/S

Advanced Technologies

Enhanced Power Loss Data Protection No
Hardware Encryption AES 128 bit
