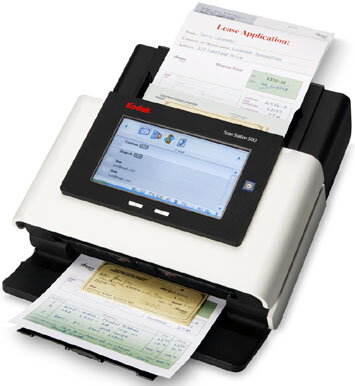

Kodak Scan Station 500

Add performance and power — in a small package — to your business.
Getting documents into the workflow fast is essential. Helping your business
do more with those documents is even more important. That's why we built
the Kodak Scan Station 500. It's a network scanning device loaded with smart
features that make it easy to integrate, manage, and scan.
Now with a host of powerful remote administration functions to give system
administrators control over your networked Scan Station 500 devices.

Send information. Not just data.
Our exclusive Voice Attachment feature
gives you the option to record and send
essential directions with your documents.
Make sure everyone gets the message.
With one scan, send a document to the network,
to e-mail, to the printer, to fax, to a USB drive, to
FTP, to SFTP, to FTPs, and to "cloud" destinations
such as Microsoft SharePoint and Evernote — simultaneously.

Scan Station 500

Recommended Daily Volume Up to 3,000 pages per day
Connectivity 10/100 Base T and built-in 56K fax modem, no host PC required
Output Methods Scan to network share, scan to print, scan to e-mail, scan to fax, scan to portable USB drive, scan to FTP, scan to SFTP, scan to FTPs (anonymous, authenticated, with proxy support) and scan to "cloud" destinations such as MICROSOFT SHAREPOINT
Network Protocols TCP/IP, SMB, authenticated SMTP (login, plain text, CRAM, NTLM), DHCP (or static), NT domain authentication
Security Features PDF private key encryption, optional password access, option to enable/disable the ability to scan to portable USB drives, secure login via LDAP, activity logging by Login ID, IP port blocking
Remote Administration
(for system administrators only) Secure login with a customizable password, ability to create and manage lists of Scan Station 500 devices, group and classify managed devices, update the configuration and/or embedded software of one, some or all managed devices, view the status of managed devices, remotely access and manage the logs of a single managed device, restart or power off a single managed device
File Format Outputs Single and multipage TIFF, JPEG, PDF, text searchable PDF, encrypted PDF, optional JPEG compressed TIFF, WAV audio files
Control Panel 20.3 cm (8 in.) 800x480 TFT LCD with touchscreen
Audio Built-in microphone and speaker to record and play back Voice Attachment messages
On-board Processor, Memory, Hard Drive Intel Atom Processor, 1 GB RAM, 320 GB hard drive
Scanning Technology Duplex scanning with dual color quadlinear CCD, 600 dpi optical resolution, capture bit depth is 30 bits (10 x 3), color output bit depth is 24 bits (8 x 3), grayscale output bit depth is 256 levels (8-bit)
Output Resolution 75, 100, 150, 200, 240, 300, 400, 600 dpi
Imaging Features Perfect Page Scanning, deskew, autocrop, content-based blank page removal, automatic orientation
Throughput Speeds (Portrait, letter size, 200 dpi) Black-and-white/grayscale: up to 45 ppm/90 ipm
Color: up to 30 ppm/60 ipm
Multi-Feed Detection With ultrasonic technology
Feeder Up to 75 sheets of 80 g/m² (20 lb.) paper
Maximum Document Size 216 mm x 863 mm (8.5 in. x 34 in.)– may be restricted at certain resolutions
Minimum Document Size 50 mm x 63.5 mm (2 in. x 2.5 in.);
Multiple-sheet feeding: 75 mm x 125 mm (3 in. x 5 in.)
Paper Thickness and Weight 52-413 g/m² (110 lb.) paper
ID cards up to 1.25 mm (0.05 in.) thick
Approvals and Product Certifications AS/NZS CISPR 22:2006 Class A (C-Tick Mark), CAN/CSA-C22.2 No. 60950-1 (TUV C Mark), Canada ICES-003 Issue 4 (Class A), GB4943, GB9254 (Class A), GB 17625.1 Harmonics (CCC "S&E" Mark), EN 55022 ITE Emissions (Class A), EN 61000-3-3 Flicker, EN 55024 ITE Immunity (CE Mark), EN 60950 (TUV GS Mark), IEC 60950-1, VCCI (Class A), CNS 13438 (Class A), CNS 14336 (BSMI Mark), UL 60950-1 (TUV US Mark), CFR 47 Part 15 Subpart B (FCC Class A), Argentina S-Mark
Dimensions Weight: 10.5 kg (23 lbs.)
Depth: 38.1 cm (15 in.)
Width: 34.9 cm (13.8 in.)
Height: 20.8 cm (8.2 in.)
What's in the box KODAK Scan Station 500, power cords, User's Guide, Setup & Documentation CD-ROMs, Installation Guide, one portable USB drive, configuration organizer software, scanner administration software
Recommended PC Configuration for configuration organizer software and scanner administration software Pentium 4, 2.8 GHz processor
1 GB RAM
USB 2.0
Windows XP (SP3)
Windows Vista (SP2)
Windows 7 (SP1)
Accessories Available Portable USB drives
KODAK Scan Station 500 Keyboard and Stand Accessory
KODAK A3 Flatbed Accessory
Consumables Available Feed modules, Roller cleaning pads, Staticide Wipes
Software Available NSi AutoStore Client enabled, other NSi AutoStore applications available
Recommended portable USB drive specs USB 2.0, Minimum size for configuration: 32 MB
Minimum size for storing images/files: 128 MB
Environmental Factors Operating temperature: 10-35° C (50-95° F)
Operating humidity: 10% to 85% RH, Altitude <2000M or 6562 Feet
Illumination Dual Fluorescent (Cold Cathode)
Power Consumption Off mode: <4 Watts;
Operating: <95 Watts
Interfaces On rear panel: four USB 2.0 ports, one RJ45 10/100 Base T Ethernet port, one custom flatbed port and one RJ11 telephone jack On bezel: one USB 2.0 port
