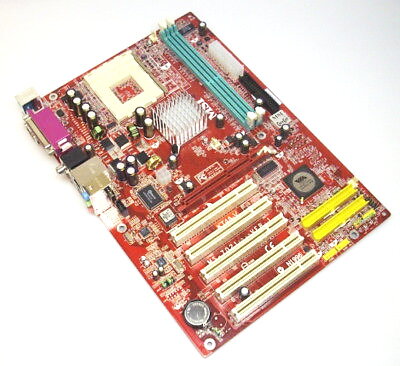

MSI KT4A-V, MS-7021 VER:1 mainboard

General

Chipset Type
VIA Apollo KT400A / VIA VT8237
Compatible Processors
Athlon, Duron, Athlon XP, Sempron
Processor Socket
Socket A
Max Bus Speed
400 MHz
Max Processors Qty
1
Manufacturer
MSI Computer Corp.

Processor

Max Supported Qty
1
Installed Qty
0

Expansion / Connectivity

Expansion Slots
2 x DIMM 184-pin (2.5 V)
1 x AGP 8x
5 x PCI (3.3 V/ 5 V)
1 x CPU
Storage Interfaces
ATA-133 -connectors: 2 x 40pin IDC
Internal Interfaces
1 x floppy
Additional Connectors (Optional)
2 x USB 2.0

Storage Controller

Interface Type
ATA-133

Audio

Audio Codec
Realtek ALC655
Compliant Standards
Sound Blaster, DirectSound, AC '97

Networking

Data Link Protocol
Ethernet, Fast Ethernet
Network Controller
Realtek RTL8201BL
Network
Ethernet

Miscellaneous

Product Type
motherboard

Interface Provided

Qty
1, 4
Type
LAN, SPDIF out, USB 2.0, audio line-in, audio line-out, microphone, parallel, serial
Connector Type
mini-jack

Processor / Memory / Storage

Max Supported Qty
1

RAM

Max Supported Size
2 GB

Audio Output

Sound Output Mode
5.1 channel surround
Compliant Standards
AC '97, DirectSound, Sound Blaster
Signal Processor
VIA VT8237
Type
sound card
Audio Codec
Realtek ALC655
Audio
6-channel

Video

Video Output
none

LAN

Network Interfaces
Ethernet
Network Controller
Realtek RTL8201BL

Supported RAM

Bus Clock
400 MHz, 333 MHz, 266 MHz, 200 MHz
Speed
PC3200, PC2700, PC2100, PC1600
Max Size
2 GB
Technology
DDR

Header

Brand
MSI
Product Line
MSI
Model
KT4A-V
Packaged Quantity
1
Compatibility
PC

Mainboard

Form Factor
ATX
Processor Socket
Socket A
Compatible Processors
Athlon, Athlon XP, Duron, Sempron
Data Bus Speed
400 MHz
Chipset Type
VIA Apollo KT400A
I/O Controller
VIA VT8237
Supported RAM Technology
DDR SDRAM
Supported RAM Speed
200 MHz, 266 MHz, 333 MHz, 400 MHz
Supported RAM Standard
PC1600, PC2100, PC2700, PC3200

Mainboard Features

BIOS Features
ACPI support, DMI support

Interfaces

Storage
ATA-133

Expansion Slots

Total Qty
1, 2, 5
Voltage
2.5 V, 3.3 V/ 5 V
Type
AGP 8x, CPU, DIMM 184-pin, PCI

Dimensions & Weight

Width
11.6 in
Depth
8.1 in

Storage Interfaces

Interface
ATA-133
Connector(s)
2 x 40pin IDC

Internal Interfaces

Type
floppy
Qty
1

Features

BIOS Features
ACPI support, DMI support

General

Manufacturer
MSI Computer Corp.
