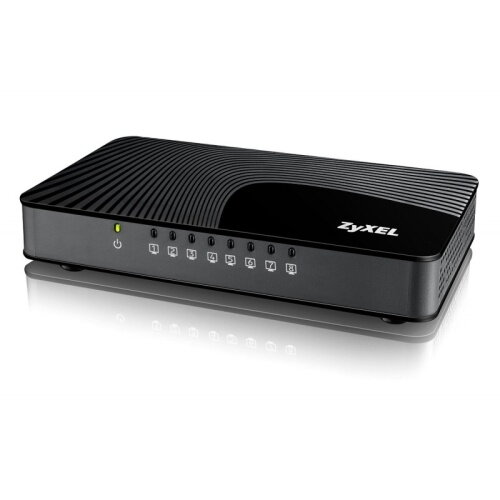

ZyXEL GS-108S v2

Standard

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3 Nway auto-negotiation
IEEE 802.3x full duplex operation and flow control
IEEE 802.3az Energy Efficient Ethernet

Performance

Data transfer rate (half duplex/full duplex):
Ethernet: 10/20 Mbps
Fast Ethernet: 100/200 Mbps
Gigabit Ethernet: 1000/2000 Mbps
MAC address table: 4K
Memory buffer: 128 KB
Switching fabric (non-blocking): 16 Gbps

Features

Auto-MDI/MDIX in all ports
Transmission method:
Store-and-forward architecture
Port-based Quality of Service (QoS) support
Jumbo Frame support up to 9 KB

Hardware Specifications

Interface

Eight RJ-45 10/100/1000 Mbps Ethernet ports with auto MDI/MDIX support

QoS Ports

Two high-priority QoS ports, two medium-priority QoS ports, and four low-priority QoS ports

LED Indicator

PWR: Power
Per port: Link/Activity
Amber: 10/100 Mbps
Green: 1000 Mbps

Power supply

Input: 100V-240V AC
Output: 5V DC, 1A

Power Consumption

3.0 watt max.

Physical Specifications

Item dimensions (WxDxH): 138.1 x 67.6 x 28.6 mm (5.4" x 2.7" x 1.1")
Item weight: 118g (0.26 lb.)
Packing dimensions (WxDxH): 142 x 83 x 92 mm (5.6" x 3.3" x 3.6")
Packing weight: 275g (0.61 lb.)

Hardware Specifications
Physical Specifications
Environmental Specifications

Operating Environment

Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10% to 90% (Non-condensing)

Storage Environment

Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 10% to 90% (Non-condensing)

Certification

CE, FCC Class B, BSMI
