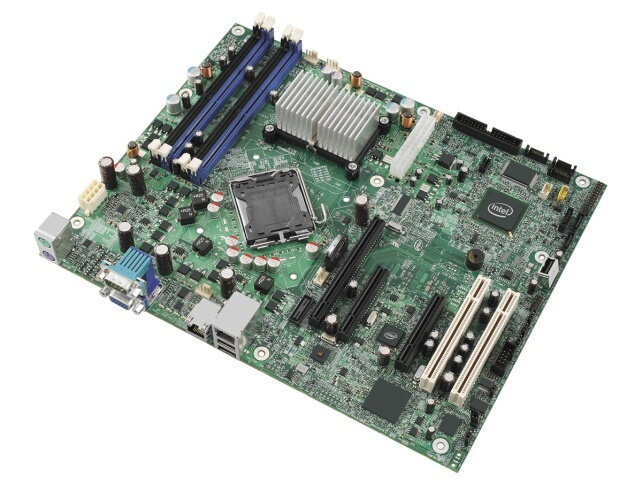

Intel S3200SH server mainboard

Essentials

Product Collection Intel® Server Board S3200SH Family
Code Name Products formerly Snow Hill
Status Discontinued
Launch Date Q3'07
EOL Announce Thursday, May 31, 2012
Last Order Friday, November 30, 2012
Last Receipt Attributes Sunday, March 31, 2013
Compatible Product Series 37305, 34693, 30806, 33904
Board Form Factor ATX
Chassis Form Factor Rack or Pedestal
Socket LGA775
Integrated BMC with IPMI IPMI 2.0
Included Items (1) Intel® Server Board S3200SHV
Recommended Customer Price N/A
Board Chipset Intel® 3200 Memory Controller
Target Market Small Business/1st Server

Supplemental Information

Embedded Options Available Yes
Description Intel® Server Board S3210SHV with single GbE.

Memory Specifications

Max Memory Size (dependent on memory type) 8 GB
Memory Types DDR2 ECC UDIMM
Max # of DIMMs 4

Processor Graphics

Integrated Graphics ‡ Yes

Expansion Options

PCIe x4 Gen 1.x 1
PCIe x8 Gen 1.x 1

I/O Specifications

USB Revision USB 2.0
Total # of SATA Ports 6
RAID Configuration Intel Emb RAID (0,1, 5)
# of Serial Ports 2
Integrated LAN Single, GbE
Integrated SAS Ports 0

Package Specifications

Max CPU Configuration 1
Low Halogen Options Available See MDDS

Advanced Technologies

Intel® Remote Management Module Support No
