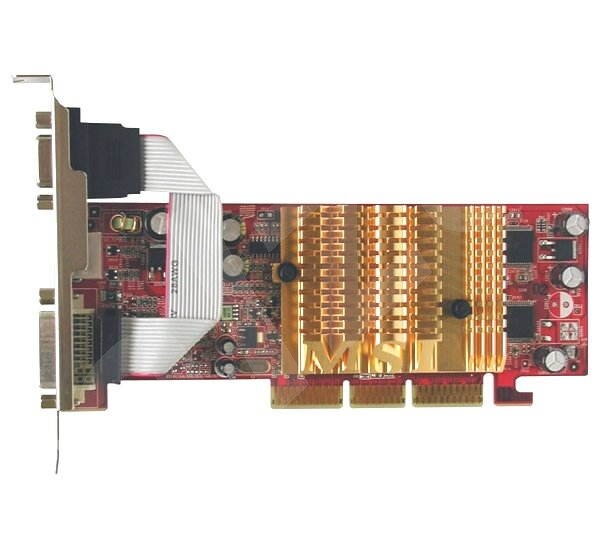

MSI FX5200-TD128LF GeForce FX 5200 128MB DDR AGP 4X/8X VGA

GeforceFX 5200 Chipset Features


CineFX Shading Architecture

Support for DX 9.0 Pixel/Vertex Shader 2.0+.

Very long pixel programs up to 1024 instructions.
Very long vertex programs with up to 256 static instructions and up to 65536 instructions

executed before termination.

Looping and subroutines with up to 256 loops per vertex program.

Subroutines in shader programs.
Dynamic flow control.

Conditional write masking.

Conditional execution.
Procedural shading.
Full instruction set for vertex and pixel programs.
Z-correct bump-mapping.

Hardware-accelerated shadow effects with shadow buffers.

Two-sided stencil.

Programmable matrix palette skinning.

Keyframe animation.

Custom lens effects: fish eye, wide angle, fresnel effects, water refraction.

High-Performance, High-Precision, 3D Rendering Engine
4 pixels per clock rendering engine.
128-bit, studio-quality floating point precision through the entire graphics pipeline.

Native support for 128-bit floating point, 64-bit floating point and 32-bit integer rendering

modes.

Up to 16 textures per pass.

Support for sRGB texture format for gamma textures.

DirectX and S3TC texture compression.


High-Performance 2D Rendering Engine

Optimized for 32-, 24-, 16-, 15- and 8-bpp modes.

True-color, 64x64 hardware cursor with alpha.

Multi-buffering (double, triple or quad) for smooth animation and video playback.


Advanced Display Pipeline with Full nView Capabilities

Dual, 400MHz RAMDACs for display resolutions up to and including 2048x1536@85Hz.

Integrated NTSC/PAL TV encoder support resolutions up to 1024x768 without the need for
panning with built-in Macrovisioncopy protection.

Video Mixing Renderer (VMR) supports multiple video windows with full quality and features

in each window.

Digital Vibrance control (DVC) 3.0

DVC color controls.

DVC image sharpening controls.
Feature
GeForce FX 5800
GeForce FX 5600
GeForce FX 5200
CineFX Engine
Yes
Yes
Yes
Intellisample

Technology
Yes
Yes
N/A
DirectX 9
Yes
Yes
Yes
AGP
8X
8X
8X
UDA
Yes
Yes
Yes
Process
0.13u
0.13u
0.15u
Pixels/Clock
8
4
4
Memory
DDR-II
DDR
DDR
RAMDAC
400
400
350
All brand name amp; products are registered trademarks of their respective companies.

All Chipset specs are derived from Nvidia data sheet. For your reference only.


Operation Systems and API support

Windows® XP / 2000
Complete DirectX support, including DirectX 9.0 and lower.

Full OpenGL 1.4 and lower.

Compatibility

NVIDIA Unified Driver Architecture (UDA)

Fully compliant professional OpenGL 1.4 API with NVIDIA extensions, on all Windows

operating systems.

WHQL-certified for Windows® XP, Windows® 2000.
