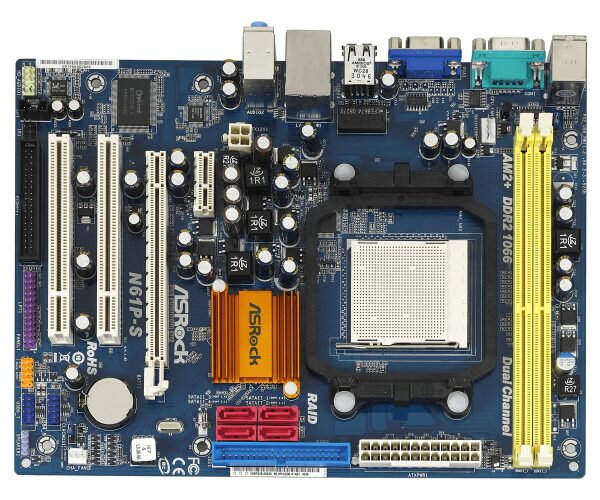

ASRock N61P-S mainboard (trieda B)

Nefunkčná integrovaná zvuková karta.

CPU
- Support up to 95W Socket AM2+* / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
- Supports AMD's Cool 'n' Quiet Technology
- FSB 1000MHz (2.0 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport Technology
- AM3 CPU Ready*

*If you use AM3 / AM2+ CPU on AM2 chipset motherboard, the system bus speed will downgrade from HT3.0 (5200 MT/s) to HT1.0 (2000 MT/s), but the CPU frequency will not be influenced.

**For more information, please refer to the "CPU Support List".
Chipset
- NVIDIA® GeForce 6150SE / nForce 430
Memory
- Dual Channel DDR2 memory technology
- 2 x DDR2 DIMM slots
- Supports DDR2 1066*/800/667/533 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB**

*Support with AM3 / AM2+ CPU.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- Supports Smart BIOS
Graphics
- Integrated NVIDIA® GeForce6-class graphics
- DX9.0 VGA, Pixel Shader 3.0
- Max. shared memory 256MB
- Supports D-Sub with max. resolution up to 1920x1440 @ 60Hz
Audio
- 5.1 CH Windows® Vista™ Premium Level HD Audio (ALC662 Audio Codec)
LAN
- Realtek PHY RTL8201EL-GR/RTL8201CL
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
- Supports PXE
Slots
- 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 2 x PCI slots
Connector
- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ and Hot Plug functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x Print port header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
Rear Panel I/O
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x VGA Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jack: Line in / Front Speaker / Microphone
Unique Feature
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor
- Micro ATX Form Factor: 9.6-in x 7.0-in, 24.4 cm x 17.8 cm
OS
- Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications
- FCC, CE
