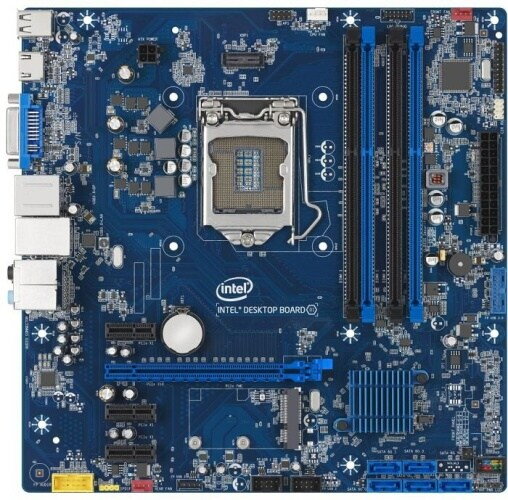

Intel DH87RL desktop board

Essentials

Product Collection Intel® Desktop Boards with Intel® H87 Chipset
Status Discontinued
Launch Date Q2'13
Board Form Factor Micro ATX
Socket LGA1150
TDP 95 W
Recommended Customer Price N/A

Supplemental Information

Embedded Options Available No

Memory & Storage

Max Memory Size (dependent on memory type) 32 GB
Memory Types DDR3 1333/1600
Max # of Memory Channels 2
Max # of DIMMs 4
ECC Memory Supported ‡ No

Processor Graphics

Integrated Graphics ‡ Yes
Graphics Output DVI-I, HDMI, DisplayPort* v1.2
# of Displays Supported ‡ 3
Discrete Graphics PCIe 3.0 x16
Requires a Processor with Intel Graphics Technology Yes

Expansion Options

PCIe x16 Gen 3 1
PCIe x1 Gen 2.x 3
PCIe Mini Card Slot (Full Length) 1

I/O Specifications

# of USB Ports 14
USB 2.0 Configuration (External + Internal) 2 6
USB 3.0 Configuration (External + Internal) 4 2
Total # of SATA Ports 6
Max # of SATA 6.0 Gb/s Ports 6
RAID Configuration 0,1,5,10
Audio (back channel + front channel) 8 2
Integrated LAN 10/100/1000 Mbps
Consumer Infrared Rx Sensor Yes
S/PDIF Out Connector 1

Package Specifications

Max CPU Configuration 1
Low Halogen Options Available See MDDS

Advanced Technologies

Intel® HD Audio Technology Yes
Intel® Matrix Storage Technology Yes
Intel® Rapid Storage Technology Yes
