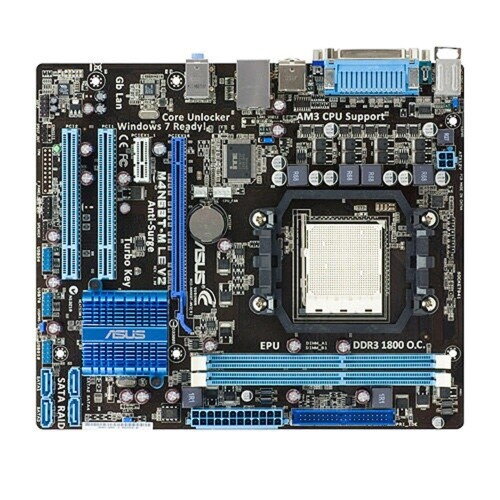

ASUS M4N68T-M LE V2 mainboard

Popis produktu:

CPU:
AMD Socket AM3 ;Phenom™II /Athlon™II /Sempron™ 100 Series Processors
AMD Cool 'n' Quiet™ Technology
AMD 64 architecture enables simultaneous 32-bit and 64-bit computing
*Refer to www.asus.com for the AMD CPU support list

Chipset:
NVIDIA Geforce 7025/nForce 630a

System Bus:
Up to 2000/1600 MT/s

Memory:
2 x DIMM, Max. 8 GB, DDR3 1800(O.C.)/1600(O.C.)/1333/1066 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture

Expansion Slots:
1 x PCIe x16
1 x PCIe x1
2 x PCI

VGA:
Integrated Programmable Shader model3.0 DirectX 9 graphics processor
Max. shared memory: 256 MB
Supports RGB with max. resolution 1920 x1440 (@75Hz)

Storage:
Southbridge
1 xUltraDMA 133/100
4 xSATA 3 Gb/s ports Support RAID 0,1,5,10,JBOD

LAN:
Gb LAN
Audio VT1708S High Definition Audio 8-Channel CODEC
*Choose the chassis with HD audio module in front panel to support 8-Channel audio output
- Support S/PDIF out interface
- Support Multi-streaming, Single SPDIF Out, Anti-pop Function
USB 10 USB 2.0/1.1 ports (6 ports at mid-board, 4 ports at back panel)
ASUS Unique Features ASUS EPU-4 Engine
ASUS Express Gate
ASUS Q-Fan
ASUS CrashFree BIOS 3
ASUS EZ Flash 2
ASUS AI NET 2
ASUS MyLogo 2

Overclocking Features:
Intelligent overclocking tools
- ASUS Turbo Key
SFS (Stepless Frequency Selection)
- PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment
- HT tuning from 200MHz up to 550MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)

Back Panel I/O Ports:
1 x Parallel port
1 x VGA
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LAN(RJ45) port
4 x USB 2.0/1.1
1 x COM port
3 x Audio jacks

Internal I/O Connectors:
3 x USB connectors (6 ports)
1 x IDE connector
4 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Front panel audio connector
1 x SPDIF out
1 x Internal speaker connector
1 x 24-pin EATX Power connector
1 x 4-pin ATX 12V Power connector
1 x System Panel connector

BIOS:
8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS v2.5, ACPI 2.0a

Form:
Factor uATX Form Factor
