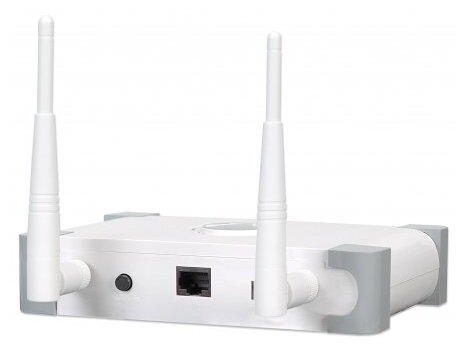

Intellinet Wireless 300N PoE Access Point

Standards
IEEE 802.1d (Spanning Tree Protocol)
IEEE 802.11b (11 Mbps Wireless LAN)
IEEE 802.11g (54 Mbps Wireless LAN)
IEEE 802.11n (300 Mbps Wireless LAN)
IEEE 802.1x (Network Access Control)
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3af (Power over Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)

General
LAN port: 1 RJ45 10/100 Mbps data and power input port (PD port)
LAN ports with Auto MDI/MDI-X
Flash: 4 MB
Memory: 16 MB SDRAM
Certifications: FCC Class B, CE Mark, RoHS

Wireless
Chipset: Ralink RT3052
Wireless frequency range: 2.400 – 2.483 GHz
Modulation technologies:
- 802.11b: Direct Sequence Spread Spectrum (DSSS): DBPSK, DQPSK, CCK
- 802.11g: Orthogonal Frequency Division Multiplexing (OFDM): BPSK, QPSK, 16QAM, 64QAM
- 802.11n: Orthogonal Frequency Division Multiplexing (OFDM): BPSK, QPSK, 16QAM, 64QAM
Data rates:
- IEEE 802.11b (11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps)
- IEEE 802.11g (54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps)
- IEEE 802.11n (MCS0-15: up to 300 Mbps)
Output power:
- OFDM: 14 dBm +/- 1.5 dBm (300 Mbps, 40 mW max.)
- OFDM: 15 dBm +/- 1.5 dBm (54 Mbps, 40 mW max.)
- CCK: 17 dBm +/- 1 dBm (11 Mbps, 63 mW max.)
Receiver sensitivity:
- 11n (300 Mbps) MCS0-15: 20 MHz: -73 dBm; 40MHz: -68 dBm
- 11g (54 Mbps) OFDM: -78 dBm
- 11b (11 Mbps) CCK: -91 dBm
Wireless operation modes:
- Access Point
- Station Infrastructure (AP Client)
- Point-to-Point Bridge
- Point-to-Multi-Point Bridge
- WDS Bridge
- Universal Repeater
Wireless security:
- WEP encryption (64/128 bit)
- WPA TKIP
- WPA2 AES
- WPA2 mixed
- WPA RADIUS
- 802.1x Authentication
- Internal MD5/PEAP RADIUS server
- Client access control through media access control (MAC) filter
Antennas:
- 2 detachable dipole antennas with 3 dBi gain each
- 2T2R MIMO mode (2 transmitters, 2 receivers)

LEDs
Power
WLAN Link/Act
LAN Link/Act

Environmental
Dimensions: 160 (W) x 127 (L) x 35 (H) mm (6.3 x 5.0 x 1.4 in.)
Weight: 0.8 kg (1.7 lbs.)
Operating temperature: 0 – 40°C (32 – 104°F)
Operating humidity: 10 – 90% RH, non-condensing
Storage temperature: -20 – 60°C (4 – 149°F)

Power
External power adapter: 5 V DC, 1.0 A
Power consumption: 4 Watts max.
Via PoE PD port: 48 V, 0.2 A
