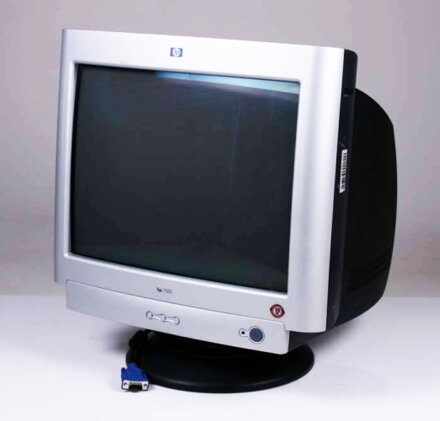

HP 7500

Type

Color, Conventional FST, multi-frequency
Dimensions (H x W x D)

Unpacked: 17 x 16.6 x 17.5 in (43.2 x41 x 44.5 cm)
Weight Unpacked: 38 lb (17.23 kg) Packaged: 46.2 lb (20.9 kg)

Picture Tube Size (diagonal)

17-inch (43.18 cm)
Viewable Image Area (diagonal)

16-inch (40.64 cm)
Trio Dot Pitch

0.28 mm
Horizontal Dot Pitch

0.24 mm
Horizontal Frequency (kHz)

30 to 70 kHz
Vertical Frequency (Hz)

50 to 140 Hz
Maximum Pre-set Resolution

1280 x 1024 @ 60 Hz
Preferred Flicker Free Resolution

1024 x 768 @ 85 Hz
Preset Graphic Modes (non-interlaced)

1280 x 1024@ 60 Hz
1024 x 768 @ 85 Hz and 75 Hz
800 x 600 @ 85 Hz and 75 Hz
720 x 400 @ 70 Hz
640 x 480 @ 85 Hz, 75 Hz, 60 Hz

User-Modes

Yes, 8 modes
Anti-Glare/Anti-Static

Yes
AssetControl

Yes, supported
Plug and Play

Yes
Icon Based On-Screen Display Controls

Yes
User Controls

Brightness, Contrast
Size and Positioning
Pincushion (barrel)
Trapezoid
Tilt (rotation)
Selectable Color temperature
Parallelogram
Pincushion Balance
Exit
Degauss
Factory Reset/Recall
Current Display Mode

Agency Approvals/Certifications

UL/CSA/CUL Approval
ISO9241-3, -7, -8 VOT Guidelines Approval
MPR-II Compliant
TCO '99
FCC Approval
Microsoft WHQL Certified
Energy Star Compliant
CE

Power Supply

Universal; 100 to 240 V, 50 ± 3Hz and 60 ± 3Hz
