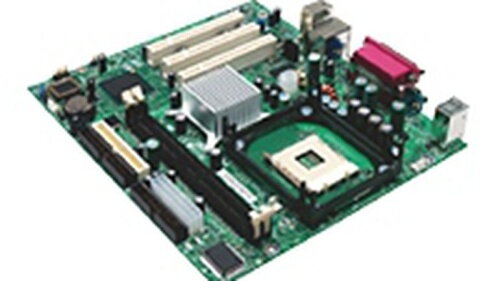

Intel Desktop Board D845GLVA

General

Overclocking
This board features detailed manual setup options that aid in overclocking and performance-tuning efforts.
Form Factor
integrated
Chipset Type
Intel 845GL
Compatible Processors
Celeron, Pentium 4
Processor Socket
Socket 478
Max Bus Speed
400 MHz
Max Processors Qty
1
Manufacturer
Intel

Expansion / Connectivity

Expansion Slots
1 x CPU
2 x DIMM 184-pin (2.5 V)
3 x PCI
Storage Interfaces
ATA-100 -connectors: 2 x 40pin IDC
Internal Interfaces
1 x floppy
Additional Connectors (Optional)
2 x USB 2.0

Storage Controller

Interface Type
ATA-100

Processor

Max Supported Qty
1
Installed Qty
0

Cache Memory

Type
none

Networking

Data Link Protocol
Ethernet, Fast Ethernet
Network
Ethernet

Miscellaneous

Product Type
motherboard

Audio

Compliant Standards
AC '97

Memory

Memory Allocation Technology
shared video memory (UMA)

Interface Provided

Qty
1, 2
Type
LAN, PS/2 keyboard, PS/2 mouse, USB 2.0, VGA, audio line-in, audio line-out, microphone, parallel, serial
Connector Type
mini-jack

Processor / Memory / Storage

Max Supported Qty
1

Graphics

Memory Allocation Technology
Shared video memory (UMA)

Audio Output

Sound Output Mode
stereo
Compliant Standards
AC '97
Signal Processor
Intel 845GL
Type
sound card
Form Factor
integrated
Audio
stereo

RAM

Max Supported Size
2 GB

Video

Video Output
graphics adapter

LAN

Network Interfaces
Ethernet

Supported RAM

Bus Clock
266 MHz, 200 MHz
Registered or Buffered
Unbuffered
Speed
PC2100, PC1600
Technology
DDR
Max Size
2 GB

Environmental Parameters

Min Storage Temperature
-40 °F
Max Storage Temperature
158 °F
Min Operating Temperature
32 °F
Max Operating Temperature
131 °F

Header

Brand
Intel
Product Line
Intel Desktop Board
Model
D845GLVA
Packaged Quantity
1
Compatibility
PC

Mainboard

Form Factor
micro ATX
Processor Socket
Socket 478
Compatible Processors
Celeron, Pentium 4
Data Bus Speed
400 MHz
Chipset Type
Intel 845GL
Supported RAM Technology
DDR SDRAM
Supported RAM Speed
200 MHz, 266 MHz
Supported RAM Standard
PC1600, PC2100
Supported RAM (Registered or Buffered)
unbuffered

Mainboard Features

BIOS Type
AMI
BIOS Features
ACPI 1.0b support, DMI support, WfM 2.0 support, rapid BIOS boot
Sleep / Wake Up
keyboard wake up, mouse wake up, suspend to RAM (STR), wake on LAN (WOL), wake on USB port, wake on ring (WOR)
Manual Settings
CPU frequency
Hardware Monitoring
CPU core temperature, CPU fan tachometer, chassis fan tachometer, chassis temperature, power supply fan tachometer, power supply temperature, system voltage
Hardware Features
chassis intrusion detection

Interfaces

Storage
ATA-100

Expansion Slots

Total Qty
1, 2, 3
Voltage
2.5 V
Free Qty
1, 2, 3
Type
CPU, DIMM 184-pin, PCI

Dimensions & Weight

Width
9.2 in
Depth
8.2 in

Video Memory

Memory Allocation Technology
shared video memory (UMA)

Slot Required

Type
none

Service & Support

Type
3 years warranty

Storage Interfaces

Interface
ATA-100
Connector(s)
2 x 40pin IDC

Internal Interfaces

Type
floppy
Qty
1

Features

Manual Settings
CPU frequency
BIOS Type
AMI
Hardware Features
Chassis intrusion detection
BIOS Features
DMI support, rapid BIOS boot, WfM 2.0 support, ACPI 1.0b support
Sleep / Wake Up
Keyboard wake up, suspend to RAM (STR), wake on LAN (WOL), mouse wake up, wake on USB port, wake on ring (WOR)
Hardware Monitoring
CPU core temperature, chassis temperature, power supply temperature, CPU fan tachometer, chassis fan tachometer, system voltage, power supply fan tachometer

General

Manufacturer
Intel

Intel Desktop Board D845GLVA -Motherboard
Part Number: BOXD845GLVAL
