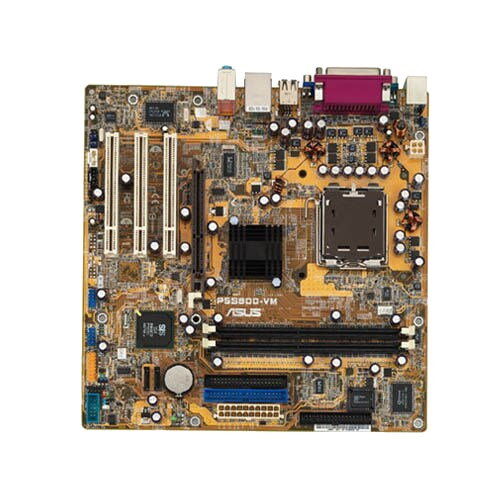

ASUS P5S800-VM mainboard

CPU
Intel Socket 775 Pentium® 4/Celeron Processors
Compatible with Intel® 05B/05A/06 processors
Chipset
SiS 671FX
SiS 964
Front Side Bus
800/533/ MHz
Memory
2 x DIMM, Max. 2 GB, DDR SDRAM ,Non-ECC, Memory
Expansion Slots
3 x PCI
1 x AGP 8x (1.5V only)
VGA
Integrated SIS Real 256E Graphics
Storage
2 xUltraDMA 133/100/
2 xSATA 3 Gb/s ports Support RAID 0,1,
Audio
Realtek ALC655 6 -Channel CODEC
Support Jack-Sensing, Enumeration, Multi-streaming
S/PDIF out on back I/O port
LAN
Realtek 100/10 Mbps Ethernet Controller
USB
8 USB 2.0 ports Integrated
Special Features
ASUS MyLogo 2
ASUS EZ Flash
ASUS CrashFree BIOS 2
Power Loss Restart
Support S/PDIF out interface
ASUS Instant Music Lite
Back Panel I/O Ports
1 x Parallel
1 x VGA
1 x Audio I/O
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x Serial port
1 x LAN(RJ45) port
1 x USB 2.0/1.1
Internal I/O Connectors
2 x USB connectors support additional 4 USB 2.0 ports
1 x CPU Fan connector
1 x Chassis Fan connector
10-pin panel connector (IDE LED, Power LED, Power Switch, Reset)
1 x S/PDIF Out connector
1 x4-pin ATX 12V Power connector
20 -pin ATX Power connector
1 x Speaker Connector
Front panel audio connector
Game/MIDI port connector
Power LED connetor
Chassis Intrusion connector
CD/AUX audio in
BIOS
4 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.3
ASUS C.P.R.(CPU Parameter Recall)
ASUS EZ Flash
ASUS CrashFree BIOS 2
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,Chasis Intrusion,

Form Factor
uATX Form Factor
9.6 inch x 9.6 inch ( 24.5 cmx 24.5 cm )
