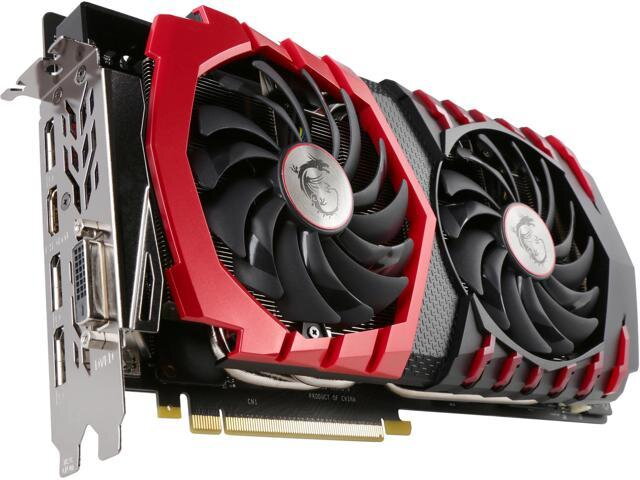

MSI GeForce GTX 1080 8GB GDDR5 (V336-001R) Gaming X

SPECIFICATIONS

Model Name
GeForce
®
GTX 1080 GAMING X 8G
Graphics Processing Unit
NVIDIA
®
GeForce
®
GTX 1080
Interface
PCI Express x16 3.0
Core Name
GP104-400
Cores
2560 Units
Core Clocks
1847 MHz / 1708 MHz (OC Mode)
1822 MHz / 1683 MHz (Gaming Mode)
1733 MHz / 1607 MHz (Silent Mode)
Memory Clock Speed
10108 MHz (OC Mode)
10010 MHz (Gaming Mode)
10010 MHz (Silent Mode)
Memory
8GB GDDR5X (256-bit)
Output
DisplayPort x 3 (Version 1.4) / HDMI (Version 2.0) / DL-
DVI-D
HDCP Support
2.2
Power consumption
180 W
Power connectors
6-pin x 1, 8-pin x 1
Recommended PSU
500 W
Card Dimension(mm)
279 x 140 x 42 mm
Weight (Card / Package)
1100 g / 1703 g
Afterburner OC
Y
DirectX Version Support
12
OpenGL Version Support
4.5
Multi-GPU Technology
SLI, 2-Way
Maximum Displays
4
VR Ready
Y
G-SYNC™ technology
Y
Adaptive Vertical Sync
Y
Digital Maximum
Resolution
7680 x 4320

TORX FAN 2.0
Award-winning fan design combining two different fin designs
for cool & quiet gaming.
Double Ball Bearings
Strong and lasting core for the TORX 2.0 Fans to provide years
of smooth and silent gaming.
ZERO FROZR
Eliminates fan noise by stopping the fans in low-load situations
so you can focus on your game.
RGB Mystic Light
Customize colors and LED effects with exclusive MSI software
and synchronize the look & feel with other components.
Military Class 4 Components
Using only the highest quality components means you get
reliable and stable in-game performance.
Solid Black Backplate
Increases toughness of the card to prevent bending while
complementing the sleek MSI GAMING design.
VR Ready
Certified to provide the performance required for a smooth
experience in your VR adventures.
MSI Gaming App
One-click performance profiles and many other premium
features to get the most out of your MSI GAMING card.
