Connect quickly and easily to a full compliment of ports with the Toshiba Advanced Port Replicator. Simply place your Notebook in the guide lugs and snap it into place to connect to your monitor, network cable and all your essential USB PC accessories - it even charges the battery while you work.
Main Features: 4x USB 2.0, RGB / DVI, Parallel / Serial, IEEE 1394, LAN, PS/2 (KB & Mouse), Line in/out, DC in, Modem, Napa compatibility.
Compatibility: Satellite Pro 6100, Portégé M100, M200, M300, S100, Tecra 9100, A2, A3, A3X, A4, A5, A6, A8, M1, M2, M3, M4, M5, M7, S1

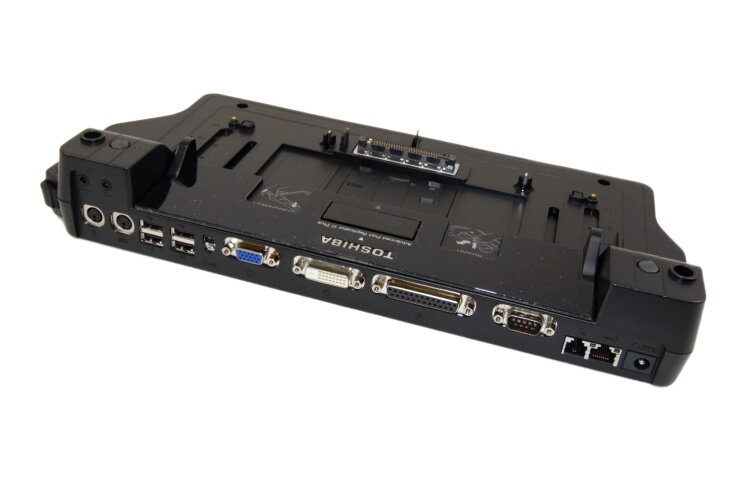

Advanced Port Replicator III plus
Product Specifications
Accessories
Back to Archive Selection
Parallel port 1 port (pass thru)
Serial port 1 port (pass thru)
External monitor port 1 port RGB, 1 port DVI (can not be used simultaneously)
USB port 4 ports (USB2.0) - If USB 2.0 is not integrated in the notebook they will operate at USB 1.1 speeds
PS/2 keyboard port 1 port (pass thru)
PS/2 mouse port 1 port (pass thru)
Line in 1 port
Line out 1 port
LAN 1 port (pass thru, RJ45), up to 1Gigabit Ethernet where supported on the notebook
Other drive bay 1 IEEE 1394 (Firewire) port
Kensington cable lock slot Yes
Dimensions (W x D x H) 356 x 160 x 54 mm
Weight 1023 g
Docking Status LED Yes
Compatability Slide positions 1 - 4. Position 1: Portégé 40xx, M100 series. Position 2: Tecra 9xxx, M1, S1, Sat Pro 6xxx, M10 Series. Position 3: Portégé M200 Series. Position 4: Tecra M2, A2 & future dockable notebooks
