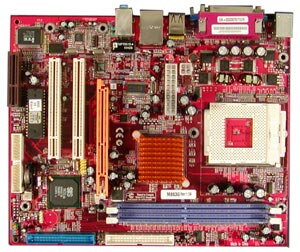

PCCHIPS M863G V1.5A mainboard

Specifications

CPU Socket A for AMD Athlon XP / Sempron processor

FSB 333/266 MHz

Chipset SiS 741GX/963L

VGA Embedded Real256E 3D Graphics with 64M share memory

Memory 2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs (DDR400/333/266)

Maximum: 2GB

Expansion Slots 1 x AGP 8X

2 x PCI

1 x CNR

LAN Realtek 8201B 10/100Mbps Fast Ethernet PHY

Audio C-Media CMI9738 4-channel audio Codec

Compliant with AC97 2.2 specification

IDE 2 x UltraDMA 133/100/66

FDD 360K~2.88M Byte, 3 Mode FDDs or LS120

Back Panel I/O Ports 1 x PS/2 keyboard

1 x PS/2 mouse

1 x Parallel Port

1 x Serial Port

1 x VGA port

4 x USB 2.0 Ports

1 x RJ 45 Port

1 x Audio I/O (Line-in, Line-out and Mic-in)

Internal I/O Connectors & Headers 20-pin ATX power supply connector

4-pin ATX 12V power supply connector

1 x USB header support additional 2 USB2.0 ports

1 x Front panel switch/LED header

1 x Front panel audio header

CPU / SYS FAN headers

1 x IrDA for SIR header

1 x Speaker header

1 x CD in header

System BIOS AMI 2Mb Flash EEPROM

Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI

Full support for ACPI revision 1.0 specification

Form Factor Micro-ATX Form Factor, 244*200mm
