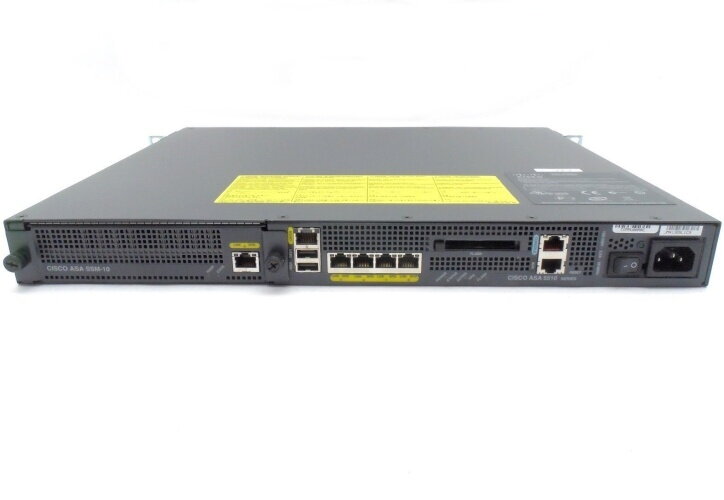

Cisco ASA 5510, Adaptive Security Appliance

Cisco ASA 5510 Adaptive Security Appliance Platform Capabilities and Capacities

Feature

Description

Firewall Throughput

Up to 300 Mbps

Maximum Firewall and IPS Throughput

● Up to 150 Mbps with AIP SSM-10
● Up to 300 Mbps with AIP SSM-20

VPN Throughput

Up to 170 Mbps

Concurrent Sessions

50,000; 130,000***

IPsec VPN Peers

250

SSL VPN Peer License Levels*

2,10, 25, 50, 100, or 250

Security Contexts

Up to 5**

Interfaces***

5 Fast Ethernet ports; 2 Gigabit Ethernet + 3 Fast Ethernet***

Virtual Interfaces (VLANs)

50; 100***

Scalability***

VPN clustering and load balancing

High Availability

Not supported; Active/Active****, Active/Standby***

* Separately licensed feature; includes two with the base system
** Separately licensed feature; includes two with the Cisco ASA 5510 Security Plus license
*** Upgrade available with Cisco ASA 5510 Security Plus license
****Available for the firewall feature set

Release Date: 04-MAY-2005
New sessions/second: 6000
Output Steady State: 150W
Form factor: 1 RU, 19-in. rack-mountable
Operating Temperature : 32 to 104 F (0 to 40 C)
Operating Shock: 1.14 m/sec (45 in./sec) 1/2 sine input
High Availability: Not supported; Active/Standby
Minimum System Flash: 64 MB
SSL VPN Peer License Levels: 10, 25, 50, 100, or 250
Interfaces: 3 Fast Ethernet + 1 management port; 5 Fast Ethernet ports
Input (per power supply) Normal line voltage: 100 to 240 VAC
Concurrent Sessions : 50,000/130,000
Input (per power supply) Frequency: 47 to 63 Hz, single-phase
USB 2.0 Ports: 2
Non-Operating Temperature: -13 to 158 F (-25 to 70 C)
Operating Vibration: 0.41 Grms2 (3 to 500 Hz) random input
Security Contexts : Not supported
Input (per power supply) Range line voltage: 100 to 240 VAC
SSM Expansion Slot: 1
Output heat dissipation: 648 BTU/hr
Memory: 256 MB
Input (per power supply) Current: 3A
Non-Operating Shock: 30 G
IPSec VPN Peers: 250
Non-Operating Relative Humidity: 5 to 95 percent noncondensing
Output Maximum Peak: 190W
Virtual interfaces (VLANs): 10; 25
Operating Altitude: 0 to 9840 ft (3000 m)
VPN Throughput: Up to 170 Mbps
Users/Nodes: Unlimited
SerialPorts: 2 RJ-45, console and auxiliary
Non-Operating Vibration: 0.41 Grms2 (3 to 500 Hz) random input
Operating Relative Humidity: 5 to 95 percent noncondensing
Firewall Throughput : Up to 300 Mbps
Concurrent Threat Mitigation Throughput (firewall + IPS services) : Up to 150 Mbps with AIP-SSM-10
Dimensions (H x W x D): 1.75 x 17.5 x 13.2 inches
Operating Acoustic Noise: 60 dBa max
Weight (with power supply): 20.0 lb (9.07 kg)
System Bus: Multibus architecture
Integrated ports: 5-10/100; 2-10/100/1000; 3-10/100; +4-10/100/1000; 4 SFP (with 4GE SSM)
User-accessible flash slot: 1
Non-Operating Altitude: 0 to 15,000 ft (4570 m)
