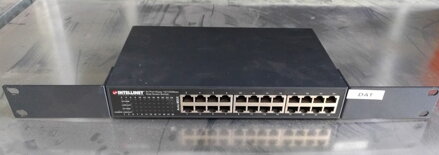

Intellinet 24 Port Nway 10/100Mbps Web Smart Switch

10/100 Mbps auto-sensing Auto-MDIX RJ-45 ports automatically detecting optimal network speeds
Configuration via Web browser
Supports NWAY Auto-Negotiation
Store and forward switching architecture
Full/half duplex operation
IEEE 802.3x flow control for full duplex
Zero packet loss back-pressure flow control for half duplex
Packet filtering/forwarding rates: 148,800 pps (100 Mbps), 14,880 pps (10 Mbps)
Supports port-based VLAN, 8 groups
Supports Port Mirroring
Supports Port Aggregation with 2 trunking groups
Supports three types of QoS: port-based, 802.1p and Diffserv
Supports Spanning Tree protocol
Bandwidth control for all ports with 8 levels
Broadcast storm control
Supports MAC address port security
Supports user-defined maximum forwarding packet Size (1536 or 1552)
Supports up to 4096 MAC address entries
192 kBytes buffer memory

Standards
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3x (flow control, for full duplex mode)
IEEE 802.1p (QoS)

General
Media support:
- 10Base-T Cat3, 4, 5 UTP/STP RJ-45
- 100Base-TX Cat5 UTP/STP RJ-45
Packet filter/forwarding rate:
- 148,800 pps (100 Mbps)
- 14,880 pps (10 Mbps)
Backplane speed: 4.8 Gbps
Buffer memory: 192 kBytes
MAC address table: 4096 entries
Switch architecture: store and forward
Certifications: FCC Class B, CE Mark

Smart Features
Port-based VLAN: 8 groups
QoS Quality of Service:
- port-based
- tag-based
- DiffServ
Port configuration options
- enable/disable
- 10, 100 Mbps or auto-negotiation
- full duplex or half duplex
- bandwidth control
- MAC address port security enable/disable
- Backpressure enable/disable
Bandwidth control options
- 400 kbps
- 800 kbps
- 2 Mbps
- 4 Mbps
- 8 Mbps
- 10 Mbps
- 50 Mbps
- 100 Mbps

LEDs
Power
Link/Tx
10/100 Mbps

Power
Internal power supply, 100 – 240 V AC, 50/60 Hz
Power consumption: 12 Watts (maximum)

Environmental
Metal housing, desktop size
Dimensions: 266 (W) x 160 (L) x 44 (H) mm (10.4 x 6.3 x 1.7 in.)
Weight: 1.7 kg (3.7 lbs.)
Operating temperature: 0 – 60°C (32 – 140°F)
Operating humidity: 10 – 90% RH, non-condensing
Storage temperature: -20 – 90°C (-4 – 194°F)
