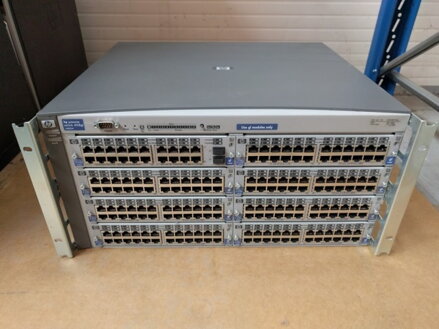

HP ProCurve switch 4108gl

HP ProCurve switch 4108gl

HP ProCurve switch 4108gl, J4865A Čítajte viac

1 (1 ks)

120 €

100 € bez DPH

Množstevné zľavy

1-2 ks: 120 € /ks

3-4 ks: 116,40 € /ks

5 ks a viac: 114 € /ks

Výrobca: HP

Popis

Summary

The ProCurve Switch 4100gl series is convergence-ready and easy to use in compact 8-slot and 4-slot modular form factors. Based on HP Fast Path Technology, these switches provide reliable, high-performance, high-density 10 Mbit, 100 Mbit, or Gigabit connectivity for a growing network. The Switch 4100gl series is the low-cost, modular alternative to stackable switches and includes a lifetime warranty.

ProCurve Networking is an experienced partner whose affordable network solutions are founded on the Adaptive EDGE Architecture™ and aligned with your business needs. ProCurve Networking enables secure, mobile, multi-service networks with superior return on IT, reduced complexity, trusted security, proven reliability, choice, and flexibility.

Related products

Key Features

Easy to use
Deployment of new applications
Performance for bandwidth - hungry applications
Flexible Configurations
Asset protection

Technical Features

Basic IP routing

Basic IP routing: enables automatic routing with up to 16 external routes - including one default route - in IP networks

Traffic prioritization (802.1p)

Traffic prioritization (802.1p): allows real-time traffic classification into 8 priority levels mapped to 3 queues

Port security

Port security: prevents unauthorised access using MAC address lockdown

Fast Path Technology

Fast Path Technology: wire-speed switching of intramodule traffic for up to 71.4 million pps throughput

Fast switch fabric

Fast switch fabric: high-performance switch fabric (up to 36.6 Gbps)

Hot-swappable modules

Hot-swappable modules: permit modules and mini-GBICs to be added or swapped without interrupting the network

Dual flash images

Dual flash images: provide independent primary and secondary OS files for backup while upgrading

Optional redundant power supply

Optional redundant power supply: provides uninterrupted power

VLAN support and tagging

VLAN support and tagging: support complete 802.1Q (4,096 VLAN IDs) and 256 VLANs simultaneously

802.3ad Link Aggregation Control Protocol (LACP) and HP trunking

802.3ad Link Aggregation Control Protocol (LACP) and HP trunking: support up to 6 trunks, each with up to 4 links (ports) per trunk; trunking across modules is supported

Technical Specifications
Networking
Address table size
8,000 entries
Management features
ProCurve Manager (included); ProCurve Manager Plus; command line interface; Web browser; configuration menu; out-of--band management (serial RS-232C)
Communications
RFC 783 TFTP; RFC 951 BootP; RFC 1542 BootP; RFC 854 Telnet; RFC 768 UDP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 2030 Simple Network Time Protocol; IEEE 802.3X Flow Control; DHCP Relay; RFC 2236 IGMPv1/v2/v3; IEEE 802.1D Spanning Tree; IEEE 802.1w Rapid Convergence Spanning Tree; IEEE 802.3ad Link Aggregation Control Protocol; Cisco Fast EtherChannel® (FEC); RFC 1492 TACACS+; RFC 2138 RADIUS; RFC 2866 RADIUS accounting; SSHv1/SSHv2 Secure Shell; Secure Sockets Layer (SSL); IEEE 802.1X Network Login; IEEE 802.1Q VLAN tagging; IEEE 802.1Q GVRP; IEEE 802.1p Priority; SNMPv1/v2c/v3; HTML and telnet management; RFC 1493 Bridge MIB; RFC 1213 MIB II; RFC 2096 IP Forwarding Table MIB; RFC 2737 Entity MIB; RFC 2863 Evolution of Interface; RFC 2665 Ethernet MIB; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm), and 9 (events); RFC 2021 RMON probe configuration (RMON v2); RFC 2668 802.3 MAU MIB; RFC 2613 SMON; RFC 2674 802.1p and 802.1Q Bridge MIB; RFC 2618 RADIUS Client MIB; RFC 2620 RADIUS Accounting MIB
Latency
<10.2 μs (FIFO 64-byte packets)
Memory and processor
Fabric: Motorola PowerPC @ 200 MHz, 8 MB flash, 32 MB SDRAM; Module: IDT MIPS32 @ 125 MHz, 512 KB flash, 512 KB SRAM; Packet buffer size: 1 MB
Performance
Routing/switching capacity
36.6 Gbps
Throughput
up to 71.4 mpps
Ports
I/O port
8 open module slots; Supports a maximum of 192 10/100 ports or 160 Gigabit ports and 16 mini-GBICs, or a combination
External I/O ports
8 open module slots; Supports a maximum of 192 10/100 ports or 160 Gigabit ports and 16 mini-GBICs, or a combination; 1 RS-232C DB-9 console port
Power
Power availability
8.2/3.8 A
Power consumption
630W
Heat dissipation
2,152 BTU/hr
Power requirements
100–127 VAC/200–240 VAC; 50/60 Hz
Rack
Rack mounting
Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only
System
