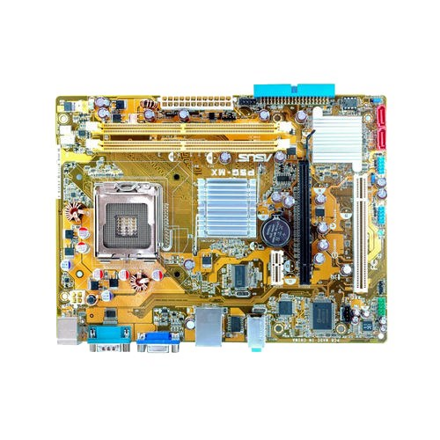

ASUS P5G-MX

CPU
Intel® Socket 775 Core™2 Duo Intel® Hyper-Threading Technology ready
Refer to www.asus.com for Intel CPU support list
* Conroe & Conroe-L only
Chipset
Intel® 945GC Intel ICH7
Front Side Bus
1066/800 MHz
Memory
2 x DIMM, Max. 4 GB, DDR2 667/533 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
**When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
1 x PCIe x16
1 x PCIe x1
1 x PCI 2.2
VGA
Integrated Intel Graphics Media Accelerator 950
Max. resolution:2048x1536x32 bpp
Storage
Southbridge
1 xUltraDMA 100
2 xSATA 3 Gb/s ports
LAN
PCIe 100 LAN
Audio
Realtek ALC662, 6 -Channel High-Definition Audio CODEC
USB
6 USB 2.0 ports (4 ports at mid-board, 2 ports at back panel)
Special Features
ASUS MyLogo
ASUS EZ Flash
ASUS CrashFree BIOS 2
ASUS Q-Fan
Back Panel I/O Ports
1 x Parallel
1 x VGA
1 x PS/2 Keyboard
1 x PS/2 Mouse
2 x LAN(RJ45) port
6 x USB 2.0/1.1
1 x COM port
Internal I/O Connectors
2 x USB connectors support additional 4 USB ports
1 x IDE connector
1 x CPU Fan connector
1 x Chassis Fan connector
1 x internal speaker connector
1 x S/PDIF Out connector
1 x 4-pin ATX 12V Power connector
Front panel audio connector
CD/AUX audio in
System Panel
1 x 24-pin EPS 12V Power connector
BIOS
4 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.4
Manageability
WOL,PXE,WOR by Ring,PME Wake Up
O/S Compatibility
Windows Vista
Windows XP
uATX Form Factor
9.6 inch x 7.6 inch ( 24.4 cm x 18.3 cm )

+I/O shield krytka
