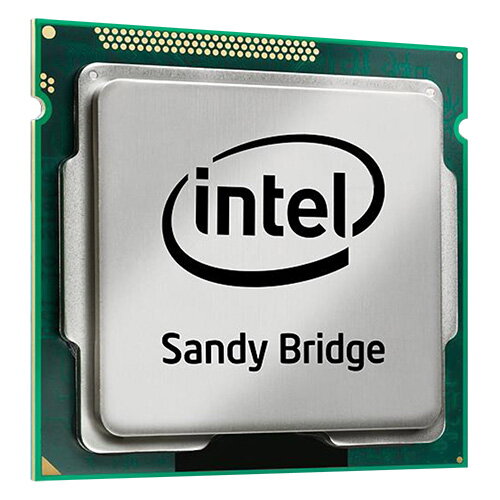

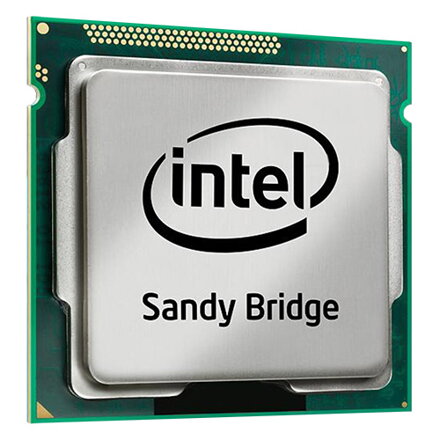

Intel Pentium G630, LGA1155

Specifications

-Essentials
Processor Number G630
Status End of Life
Launch Date Q3'11
Expected Discontinuance Q3'2013
Lithography 32 nm
Recommended Customer Price $64.00
-Performance
# of Cores 2
# of Threads 2
Processor Base Frequency 2.70 GHz
Cache 3 MB SmartCache
Bus Speed 5 GT/s DMI
TDP 65 W
-Supplemental Information
Embedded Options Available No
Datasheet Link
-Memory Specifications
Max Memory Size (dependent on memory type) 32 GB
Memory Types DDR3 1066
Max # of Memory Channels 2
Max Memory Bandwidth 17 GB/s
-Graphics Specifications
Processor Graphics ‡ Intel® HD Graphics
Graphics Base Frequency 850.00 MHz
Graphics Max Dynamic Frequency 1.10 GHz
Intel® Quick Sync Video No
Intel® InTru™ 3D Technology No
Intel® Wireless Display No
Intel® Flexible Display Interface (Intel® FDI) Yes
Intel® Clear Video HD Technology No
# of Displays Supported ‡ 2
-Expansion Options
PCI Express Revision 2.0
-Package Specifications
Sockets Supported FCLGA1155
Max CPU Configuration 1
TCASE 69.1°C
Package Size 37.5mm x 37.5mm
Low Halogen Options Available See MDDS
-Advanced Technologies
Intel® Turbo Boost Technology ‡ No
Intel® vPro Technology ‡ No
Intel® Hyper-Threading Technology ‡ No
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ No
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions SSE4.1/4.2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Fast Memory Access Yes
Intel® Flex Memory Access Yes
-Intel® Data Protection Technology
Intel® AES New Instructions No
-Intel® Platform Protection Technology
Trusted Execution Technology ‡ No
Execute Disable Bit ‡ Yes
