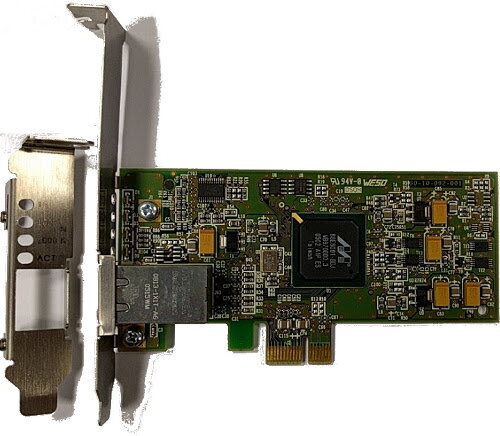

SysKonnect SK-9E21

SK-9E21
10/100/1000Base-T Adapter, PCIe x1, 1 x RJ-45

Product Highlights

PCI Low Profile (Bracket included)
WoL support
Auto MDI/MDI-X Crossover at all speeds and ports

Features

Parity check on all data path
TCP, UDP, and IP checksum generation and checking on chip
Jumbo Frame support
Dynamic Interrupt Moderation
Advanced Power Management (ACPI)

Standard Compliance

IEEE 802.3x with Flow control / Auto-negotiation
IEEE 802.1p Quality of Service
IEEE 802.3ab Gigabit Ethernet standards
IEEE 802.3 and IEEE 802.3u (Ethernet and Fast Ethernet)

Driver

X86 : Windows Server 2008 R2, Windows Server 2008 SP2, Windows 7, Windows Vista, Windows XP, Windows 2000, Windows 2003 (.Net), Windows Server 2003, NT4, Windows98 SE, ME
x64 : Windows Server 2008 R2, Windows Server 2008 SP2, Windows 7, Windows Vista, Windows XP, Windows 2000, Windows 2003 (.Net), Windows Server 2003
Solaris: SPARC 32:7,8,9
Solaris: Intel X86:8,9,10
Solaris: X64:10
Linux: X86:Kernel 2.4, Kernel 2.6
NetWare: X86:4.2, 5.x, 6.x, DOS ODI
Mac OS X:10.2, 10.3, 10.4
SCO OpenServer 5.0.7
OS/2: X86:3.0 and higher
UnixWare: X86:7.1x
DOS: Intel X86:NDIS2, ODI, PXE
FreeBSD : X86:5.1, 5.2, 5.3, 5.4, 6.0
FreeBSD 7 x86 and x64

Boot Options

Standard PXE 2.1 (Pre-Boot eXecution Environment)
RPL (Remote Program Load)

Safety Standard

CSA, CB, CE, UL

EMC

Europe : EN55022; IEC-CISPR-22 Class B EN 55024; IEC - CISPR - 24 USA: FCC, CFR 47 Part 15, Declaration of Conformity Class B

Environment Specifications

Storage: -20°C to + 70°C - Rel. Humidity 10% to 95% non-condensing
Operating: 0°C to + 50°C - Rel. Humidity 30% to 80% non-condensing

Power Consumption

Single port : @ +3.3V / VCC: max. 0.9 A / 3 W @ +3.3V(aux): max. 375 mA
Dual port : @ +3.3V / VCC: max. 1.8 A / 6 W @ +3.3V(aux): max. 375 mA

Dimension

118,4 mm x 60,3 mm

Order Numbers

900-00-200-001 SysKonnect SK-9E21 10/100/1000Base-T Adapter
