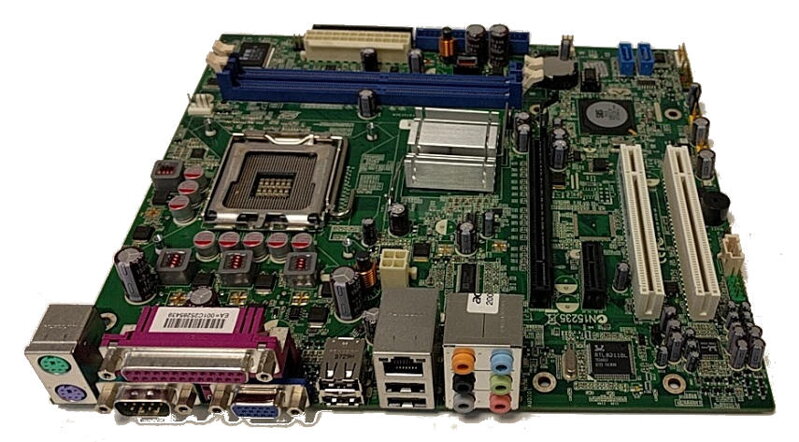

Základná doska Foxconn 671M01-8KSH Socket LGA775.

Manufacturer: Foxconn
Part Number: 671M01-8KSH

Specifications:

Processor: Intel® Core™2 Duo
Pentium® Dual-Core
Pentium® D
Pentium® 4
Celeron® D processors Socket T (LGA775)

Chipset: SIS® 671 + 968
Front Side Bus: 1066 / 800 / 533 MHz FSB

Memory: DDRII 667 / 533 / 400 x 2 DIMMs
Max. 4GB

VGA on Die: Integrated

Expansion Slots: 1 x PCIe x16, 1 x PCIe x1, 2 x PCI
IDE: ATA 133 x 1
Serial ATA(SATA)/RAID:
SATAII x 2 with RAID 0, 1, JBOD

Audio: 8 channel HD Audio
Realtek® ALC883

LAN: 10/100M LAN, Realtek® RTL8100C

Back Panel I/O Ports: 1 set 8 channel Audio
1x Parallel port
1x PS/2 keyboard port
1x PS/2 mouse port
1x VGA port
4x USB 2.0 ports
1x RJ45 LAN jack
1x Serial Port

Internal I/O Connectors: ATX 24-Pin power connector
4-pin 12V power connector
CPU / System connectors
1x CD-in connector
1x Front Audio
1x IDE connector
1x IRDA
1x Speaker
2x USB 2.0 connectors support additional 4 ports
1x Floppy connector
2x SATAII connectors
1x Front panel (color)
1x Intruder
1x S/PDIF out header
1x TPM
1x COM2
