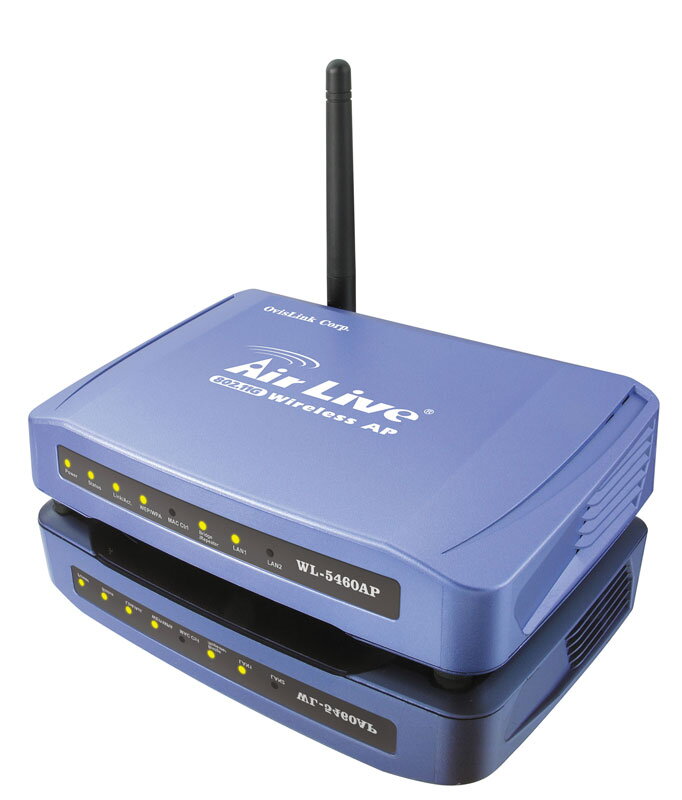

AirLive WL-5460AP v2

AirLive WL-5460AP v2

Hodnotenie produktu: Zatiaľ bez hodnotenia. Buďte prvý!

Vaše hodnotenie:

AirLive WL-5460AP v2 WiFi Access Point AirLive WiFi klient/ Access Point/ Repeater/ Bridge - 802.11g (54Mbps), 2x LAN

6 € s DPH

5 €

Dostupnosť: Skladom

Výrobca: AirLive

Skladom:2 ks

Feature AP, Bridge, Client, Repeater functions
WISP Client Router mode
WISP + Universal Repeater Mode
Detachable Antenna, 2 LAN ports
802.1x, WPA, WPA2 and Web Mgt.
TX power regulation in 4 levels
Watchdog function use PING
Wireless Client Isolation (e8 firmware)
ACK Timeout Adjustment
DHCP Relay function
802.11g Protection
Hardware 2 x 10/100Mbps LAN Port
2MB Flash, 16MB SDRAM
Reversed SMA Antenna Port
Power, LAN, WLAN LED indicators
Antenna 2 dBi detachable Dipole Antenna
Reversed SMA Connector
Frequency Range USA (FCC) 11 Channels: 2.412GHz~2.462GHz
Europe (ETSI) 13 Channels : 2.412GHz~2.472GHz
Rx Senstivity @ 25°C
IEEE 802.11b
Min (dBm)
1Mbps
-91
2Mbps
-90
5Mbps
-90
11Mbps
-86
IEEE 802.11g
Min (dBm)
6Mbps
-87
9Mbps
-87
12Mbps
-86
18Mbps
-84
24Mbps
-82
36Mbps
-78
48Mbps
-73
54Mbps
-70
Modulation Technique 11g Orthogonal Frequency Division Multiplexing (64QAM, 16QAM, QPSK,
BPSK)
11b Direct Sequence Spread Spectrum (CCK, DQPSK, DBPSK)
Data Rate: 54, 48, 36, 24, 18,11, 5.5, 2, 1 Mbps
Output Power EU and FCC version
- 20dBm Max
- Adjustable in 6 levels
Brazil version
- 26dBm Max
- Adjustable in 8 levels
WISP Mode DHCP, PPTP, L2TP, PPPoE ISP Authentication Support
Wireless Client function as WAN
WISP mode is not the same router mode
To configure the WISP mode, you PC must be connected to the LAN port
Security 64/128-bit WEP
WPA/WPA2-PSK support
802.1x Radius Support
WPA Enterprise support in AP/WDS mode
Configuration Web Management
WDS (Bridge, Client, Repeater) mode
Hide ESSID
802.1x
MAC Access Control
MAC Access Table
Wireless Client Isolation (e8 firmware)
SSID, Channel, RTS Threshold, Frag Threshold
Environmental Operating temperature: 0~60℃
Operating humidity (non-condensing): 20~80%
Storage temperature: -20~65℃
Storage humidity: 95% Max
Power Supply DC12V
EMI FCC, CE
Product Weight (g) 180 g
Product Size
( L x W x H (mm) ) 135 x 100 x 26mm
