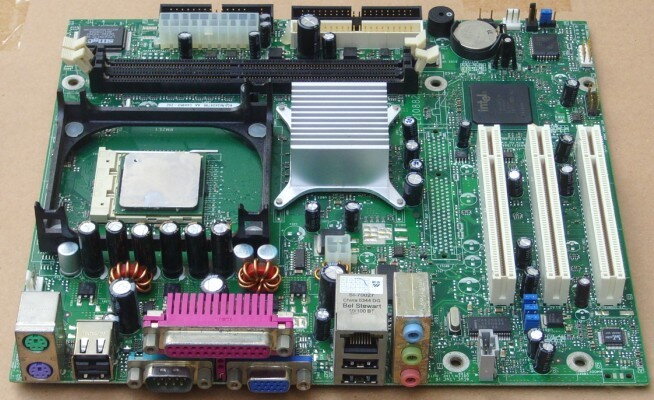

Intel D845EPI/D845GVSR

Form Factor MicroATX at 9.2 inches by 8.2 inches

CPU

Intel® Pentium® 4 processor in an mPGA-478 socket with a 533/400 MHz system bus
Intel® Celeron® processor in an mPGA-478 socket with a 400 MHz system bus
Chipset

Intel® 845E chipset, consisting of:

Intel® 82845E Memory Controller Hub (MCH)
Intel® 82801DB I/O Controller Hub (ICH4)
4 Mbit Firmware Hub (FWH)
Memory

Two 184-pin DDR SDRAM DIMM sockets, 2.5 V
Support for DDR333/266/200 MHz DIMMs
Supports up to 2 GB of system memory with DIMMs utilizing 512 Mbit technology DRAM devices
Audio

Intel 845E chipset (AC '97)
Realtek ALC202A codec
LAN

Intel® 82562ET 10/100 Mbit/sec Platform LAN Connect (PLC) device and RJ-45 connector
Expansion Slots

3 x PCI slots
Peripheral Interfaces

Up to six USB 2.0 ports
Four ports routed to the back panel
Two ports routed to the USB 2.0 header
Two IDE interfaces with Ultra DMA-33 and ATA-66/100 support
One diskette drive interface
Rear Panel I/O Ports

1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x Serial
1 x Parallel
1 x VGA
4 x USB
1 x RJ45 Ethernet
1 x Audio Panel (Line In/Out/Mic In)
