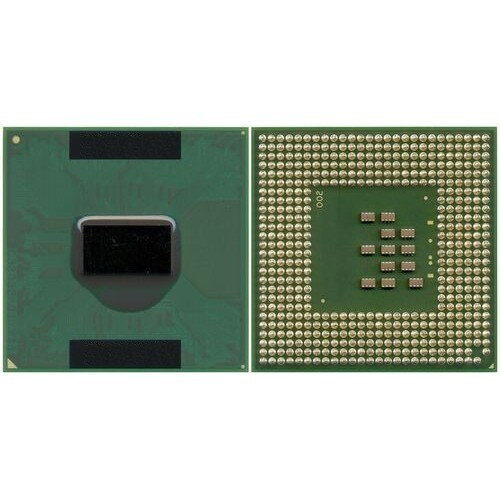

Intel Pentium M 760

Specifications

-Essentials
Processor Number 760
Status Launched
Launch Date Q2'04
Lithography 90 nm
Recommended Customer Price N/A
-Performance
# of Cores 1
Processor Base Frequency 2 GHz
Cache 2 MB L2
Bus Speed 533 MHz FSB
FSB Parity No
TDP 27 W
Scenario Design Power (SDP) 0 W
VID Voltage Range 1.260V-1.356V
-Supplemental Information
Embedded Options Available Yes
Datasheet Link
-Memory Specifications
Physical Address Extensions 32-bit
ECC Memory Supported ‡ No
-Package Specifications
Sockets Supported H-PBGA479, PPGA478
TJUNCTION 100°C
Package Size 35mm x 35mm
Processing Die Size 87 mm2
# of Processing Die Transistors 144 million
Low Halogen Options Available See MDDS
-Advanced Technologies
Intel® Turbo Boost Technology ‡ No
Intel® Hyper-Threading Technology ‡ No
Intel® Virtualization Technology (VT-x) ‡ No
Intel® 64 ‡ No
Instruction Set 32-bit
Idle States No
Enhanced Intel SpeedStep® Technology Yes
Intel® Demand Based Switching No
-Intel® Platform Protection Technology
Trusted Execution Technology ‡ No
Execute Disable Bit ‡ Yes
