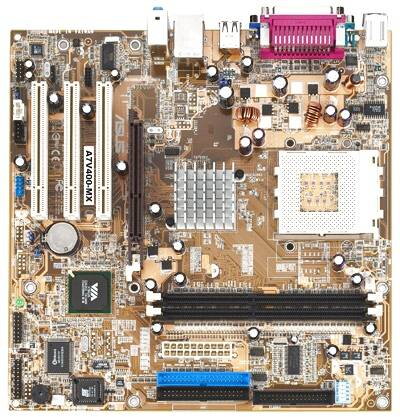

ASUS A7V400-MX

Supported CPU
CPU Socket Type
462(A)
CPU Type
Athlon XP / Athlon / Duron
FSB
400/333 MHz

Chipsets
Chipset
VIA KM400A
South Bridge
VIA VT8235 CE

Memory
Number of Memory Slots
2×184pin
Memory Standard
DDR 333
Maximum Memory Supported
2GB

Expansion Slots
AGP Slots
1 x AGP 4X / 8X
PCI Slots
3 x PCI Slots

Storage Devices
PATA
2 x ATA100 4 Dev. Max

Onboard Video
Onboard Video Chipset
S3 Graphics UniChrome 2D/3D

Onboard Audio
Audio Chipset
ADI SoundMax
Audio Channels
6 Channels

Onboard LAN
LAN Chipset
VIA VT6103
Max LAN Speed
10/100Mbps

Rear Panel Ports
PS/2
2
COM
1
LPT
1
Video Ports
D-Sub
USB 1.1/2.0
4 x USB 2.0
Audio Ports
3 Ports

Internal I/O Connectors
Onboard USB
2 x USB 2.0

Physical Spec
Form Factor
Micro ATX
Dimensions (W x L)
9.6" x 9.6"
Power Pin
20 Pin
