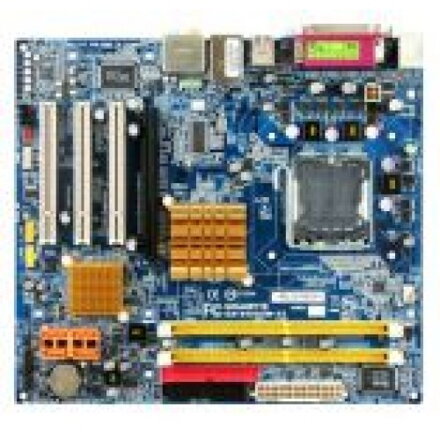

GIGABYTE GA-945GZM-S2 (rev. 3.x)

CPU
Supports Intel® Core⢠2 Extreme dual-core / Core⢠2 Duo / Pentium® D / Pentium® 4 / Celeron® D processors
Supports 1066 (by overclocking) /800/533MHz FSB
Chipset
Northbridge: Intel® 945GZ Express Chipset
Southbridge: Intel® ICH7
Realtek 8110SC Gigabit Ethernet controller
Realtek ALC883 audio codec
Memory
2 DDR II DIMM memory slots (supports up to 4GB memory)
Supports 1.8V DDR II DIMM
Supports dual channel DDR II 533/400 DIMM
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
Internal I/O Connectors
1 24-pin ATX power connector
1 4-pin ATX 12V power connector
1 floppy connector
1 IDE connector
4 SATA 3Gb/s connectors
1 CPU fan connector
1 system fan connector
1 front panel connector
1 front audio connector
1 CD In connector
1 SPDIF In/Out connector
2 USB 2.0/1.1 connectors for additional 4 ports by cables
1 COMB connector
1 Chassis Intrusion connector
1 power LED connector
Expansion Slots
1 PCI Express x 16 slot (@x4)
3 PCI slots
Back Panel Connectors
1 PS/2 keyboard port
1 PS/2 mouse port
1 parallel port
1 serial port (COMA)
1 VGA port
4 USB 2.0/1.1 ports
1 RJ-45 port
6 audio jacks (Line In / Line Out / MIC In/Surround Speaker Out (Rear Speaker Out)/Center/Subwoofer Speaker Out/Side Speaker Out)
H/W Monitoring
System voltage detection
CPU / System temperature detection
CPU / System fan speed detection
CPU warning temperature
CPU / System fan failure warning
CPU smart fan control
BIOS
1 4 Mbit flash ROM
Use of licensed AWARD BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
Form Factor
Micro ATX
22.0 cm x 24.4 cm
Other Features
Supports @BIOS
Supports Download Center
Supports Q-Flash
Supports EasyTune5
Supports Xpress Install
Supports Xpress Recovery2
Supports Virtual Dual BIOS (Xpress BIOS Rescue)

+I/O shield krytka
