Popis
Overview

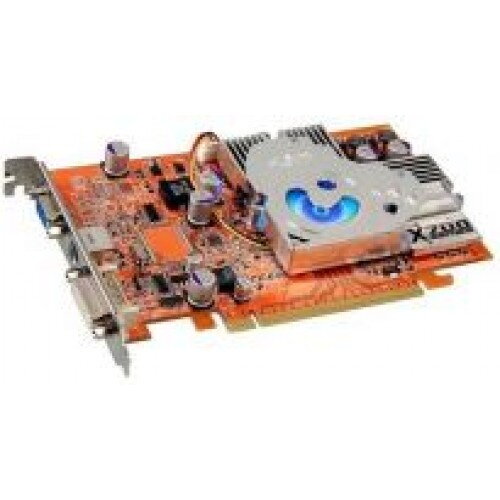

Powered by ATI® Radeon X700 Pro VPU, and adapting the latest PCI Express⢠architecture standard, the ABIT RX700 Pro-128PCIE with high quality components, extraordinary cooling, 425MHz core clock, 128MB ultra fast DDR3 memory, 8 pixel pipelines and full support of DirectX9.0 redefines the limits of graphics engineering, performance and visual quality.
Graphic Processor
ATI® Radeon X700 Pro VPU
Memory
128-bit 128MB GDDR3 Memory
VPU Core Clock
425MHz
Bus Interface
PCI Express X16
Features
Up to 8 Full Precision DX9 Pipelines
6 Parallel Geometry Pipelines
Pixel Fill-rate 3.4 Gpixel/Sec
ATI® 3Dc⢠image enhancement amp; acceleration technology
4:1 normal map compression/decompression
Reduced memory footprint
Accelerated surface detail emulates high polygon characters and scenes
ATI® SMARTSHADER⢠HD provides improved programmability and performance
ATI® SMOOTHVISION⢠HD offers the fastest, highest quality, and most flexible anti-aliasing implementation
Improved AA and AF performance for HD resolutions
12x effective Temporal MSAA
ATI® HyperZ⢠HD reaches the unprecedented levels of rendering performance
Double the Z compression (8:1)
Ehanced Hi-Z buffer for improved performance at HD resolutions
ATI® VIDEOSHADER⢠HD : a seamless integration of pixel shaders with video
FULLSTREAM for DivX, Windows Media 9, and Real Media
MPEG 1/2/4 decode and encode acceleration
New Video algorithms that use pixel shaders for 3:2 Pulldown, Interlacing, and Deblocking
Added support for high-end HD resolutions
DiectX 9.0 Architecture : Industry's fully DX9 playable DX9 Architecture
ATI® CATALYST⢠unified software suit deliver rock-solid compatibility with software drivers
I/O Interface
DVI Connector
VGA Connector
TV-Out Connector
Graphics Standards
Complete DirectX support, including DirectX 9.0 and lower
Latest OpenGL support
Support Operation System under Windows®XP/2000
Powered by ATI® Radeon X700 Pro VPU, and adapting the latest PCI Express⢠architecture standard, the ABIT RX700 Pro-128PCIE with high quality components, extraordinary cooling, 425MHz core clock, 128MB ultra fast DDR3 memory, 8 pixel pipelines and full support of DirectX9.0 redefines the limits of graphics engineering, performance and visual quality.
Graphic Processor
ATI® Radeon X700 Pro VPU
Memory
128-bit 128MB GDDR3 Memory
VPU Core Clock
425MHz
Bus Interface
PCI Express X16
Features
Up to 8 Full Precision DX9 Pipelines
6 Parallel Geometry Pipelines
Pixel Fill-rate 3.4 Gpixel/Sec
ATI® 3Dc⢠image enhancement amp; acceleration technology
4:1 normal map compression/decompression
Reduced memory footprint
Accelerated surface detail emulates high polygon characters and scenes
ATI® SMARTSHADER⢠HD provides improved programmability and performance
ATI® SMOOTHVISION⢠HD offers the fastest, highest quality, and most flexible anti-aliasing implementation
Improved AA and AF performance for HD resolutions
12x effective Temporal MSAA
ATI® HyperZ⢠HD reaches the unprecedented levels of rendering performance
Double the Z compression (8:1)
Ehanced Hi-Z buffer for improved performance at HD resolutions
ATI® VIDEOSHADER⢠HD : a seamless integration of pixel shaders with video
FULLSTREAM for DivX, Windows Media 9, and Real Media
MPEG 1/2/4 decode and encode acceleration
New Video algorithms that use pixel shaders for 3:2 Pulldown, Interlacing, and Deblocking
Added support for high-end HD resolutions
DiectX 9.0 Architecture : Industry's fully DX9 playable DX9 Architecture
ATI® CATALYST⢠unified software suit deliver rock-solid compatibility with software drivers
I/O Interface
DVI Connector
VGA Connector
TV-Out Connector
Graphics Standards
Complete DirectX support, including DirectX 9.0 and lower
Latest OpenGL support
Support Operation System under Windows®XP/2000
