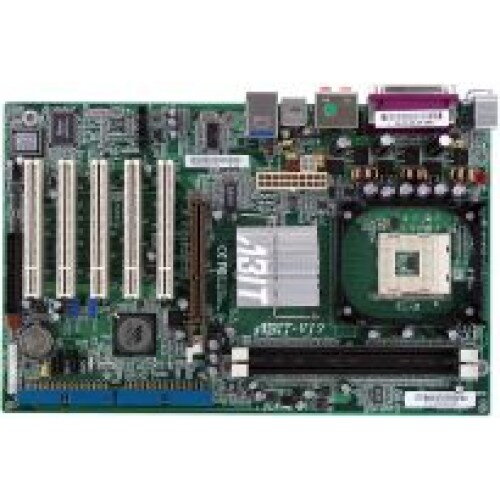

ABIT VI7

Product TypeMotherboard - ATX
Cache Memory None
Chipset Type VIA PT800
Max Bus Speed 800.0 MHz
Processor Socket Socket 478
Max Processors Qty 1.0
Compatible Processors Pentium 4
Supported RAM
Max Size 2.0 GB
Technology DDR SDRAM
Bus Clock 400 MHz,
266 MHz,
333 MHz
Speed PC2100,
PC2700,
PC3200
Registered or Buffered Unbuffered
Audio
Type 6-channel
Compliant Standards AC '97
LAN
Network Interfaces Ethernet
Modem None
Expansion / Connectivity
Expansion Slot(s) 2.0 x DIMM 184-pin ( 1.5 V/ 0.8 V ),
5.0 x CPU,
1.0 x AGP 8x,
1.0 x PCI
Storage Interfaces ATA-133 - connector(s): 2 x 40pin IDC,
Serial ATA-150 - connector(s): 2 x 7pin Serial ATA
Interfaces 1.0 x Audio line-out (center/subwoofer) - Mini-jack,
1.0 x Microphone - Mini-jack,
4.0 x PS/2 keyboard - Mini-jack,
1.0 x Audio line-out (rear) - Mini-jack,
1.0 x Audio line-out - Mini-jack,
1.0 x Audio line-in,
1.0 x LAN,
1.0 x TOSLINK,
1.0 x Serial,
1.0 x USB 2.0,
1.0 x PS/2 mouse,
1.0 x Parallel
Internal Interfaces 1.0 x Floppy - 4 pin MPC,
2.0 x Audio
Compatible Slots None
Features
BIOS Features ACPI support
Sleep / Wake Up Wake on LAN (WOL)
Miscellaneous
Cables Included 1.0 x Serial ATA cable,
1.0 x Floppy cable,
1.0 x IDE cable,
1.0 x Serial ATA power adapter
Software Included Drivers amp; utilities
Width 12.0 in
Depth 7.7 in
