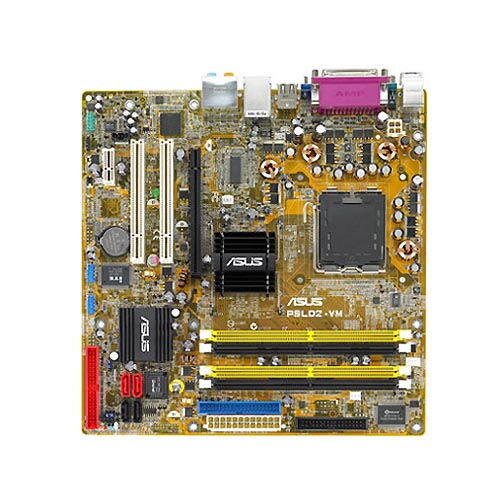

SpecificationsCPULGA775 socket for Intel® Coreâ¢2 Extreme / Coreâ¢2 Duo / Pentium® D / Pentium® 4 / Celeron® D ProcessorsIntel® EM64T / EIST / Hyper-Threading Technology
*Only PCB R2.0(or higher) support Intel® Coreâ¢2 processorChipsetIntel 945G Intel ICH7Front Side Bus1066/800/533 MHzMemory4 x DIMM, max. 4GB, DDR2 667 / 533, non-ECC, un-buffered memoryDual Channel Architecture* Due to general PC architecture, a small amount of memory is reserved for system usage and thus the actual memory size is less than the stated amount.Expansion Slots1 x PCI-E x161 x PCI-E x1 2 x PCI PCI 2.2VGAIntel Graphics Media Accelerator 950Storage/RAIDIntel ICH7 South Bridge: 1 x UltraDMA 100/66/334 x Serial ATA 300/150ITE IDE controler:1x UltraDMA 133/100AudioRealtek ALC 882, 8-ch High-Definition Audio CODECS/PDIF out interfaceLANIntel Gb LANUSB8 USB2.0 portsOther ASUS Special FeaturesASUS AI Overclocking ASUS EZ FlashASUS MyLogo2ASUS C.P.R.ASUS Q-Fan ASUS CrashFree BIOS 2Back Panel I/O Ports1 x Parallel1 x Serial1 x PS/2 Keyboard1 x PS/2 Mouse1 x VGA1 x Audio I/O1 x RJ45 4 x USBInternal I/O Connectors2 x USB connectors supports additional 4 USB portsCPU / Chassis FAN connectors24-pin EATX Power connector4-pin ATX 12V Power connectorChassis Intrusion connectorS/PDIF out connectorCD audio in3-pin PWR FAN connectorFront panel High Definition Audio connectorManageabilityWfM 2.0,DMI 2.0,WOL by PME, PXE, RPL, Chassis Intrusion, SM BusSupport
+I/O shield krytka
