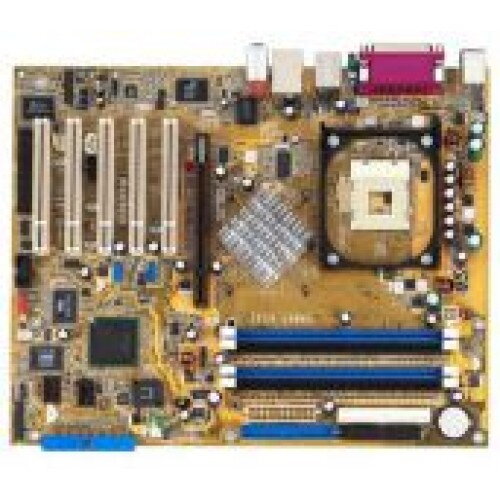

ASUS P4C800 DELUXE

Specifications
CPU
-Socket 478 for Intel Pentium 4/ Celeron up to 3.2 GHz+

-Intel Hyper-Threading Technology ready

-New power design supports Intel next generation Prescott CPU
Chipset
Intel 875P MCH

Intel ICH5R
Front Side Bus
800/ 533 / 400 MHz
Memory
-Dual Channel Memory Architecture

-4 x 184-pin DIMM Sockets support max. 4GB PC3200/PC2700/PC2100 ECC/Non_ECC DDR SDRAM memory

-Intel Performance Acceleration Technology
Expansion Slots
1 x AGP Pro/ 8X/ 4X (0.8V, 1.5V only)

5 x PCI

1 x ASUS Wi-Fi slot for optional wireless LAN upgrade
Storage/RAID
South Bridge:

2 x UltraDMA 100

2 x Serial ATA, RAID 0, 1
Audio
ADI AD1985 SoundMAX 6-channel CODEC

Audio Sensing and Enumeration Technology

support S/PDIF out interface
LAN
AI LAN:

3COM 3C940 Gigabit LAN PCI Controller supporting 10/100/1000 BASE-T Ethernet

Virtual Cable Tester™ Net-Diagnosing Utility
BIOS
AI BIOS:

CrashFree BIOS2, Q-Fan



BIOS Feature:

4 Mb Flash ROM,AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, Multi-language BIOS, ASUS EZ Flash, MyLogo2, ASUS C.P.R.
Overclocking Features
AI Overclock:

-Intelligent CPU frequency tuner

-ASUS JumperFree

-CPU, Memory, and AGP voltage adjustable

-SFS (Stepless Frequency Selection) from 100MHz up to 400MHz at 1MHz increment

-Adjustable FSB/DDR ratio. Fixed AGP/PCI frequencies

-ASUS C.P.R.(CPU Parameter Recall)
USB
Max. 8 USB2.0 ports
Special Features
InterVideo WinDVD Suite(Gold version only)

Power Loss Restart

support S/PDIF out interface

ASUS Q-Fan technology

ASUS EZ Flash

CrashFree BIOS2

Multi-language BIOS

Asus Instant Music

Asus MyLogo2
Back Panel I/O Ports
1 x Parallel

1 x Serial

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x S/PDIF Output

1 x Audio I/O

4 x USB 2.0/1.1

1 x RJ45
Internal I/O Connectors
2 x USB 2.0 connector support additional 4 USB 2.0 ports

CPU / Power / Chassis FAN connectors

Chassis Intrusion

S/PDIF out connector

CD / AUX / Modem audio in

Front Panel Audio connector

COM2 connector

GAME/MIDI connector

20-pin ATX Power connector

4-pin ATX 12V Power connector
Industrial Standard
PCI 2.2, PCI 2.3, USB 2.0
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME, Chassis Intrusion, SM Bus
Support Disc
Drivers

ASUS PC Probe

Trend Micro PC-cillin 2002 anti-virus software

ASUS LiveUpdate Utility
Accessories
User's manual

InterVideo WinDVD Suite(Gold version only)

1 x UltraDMA 133/100/66 cable

2 x Serial ATA cable

1 x IDE cable

FDD cable

I/O shield
Form Factor
ATX Form Factor 12"x9.6"(30.5cm x 24.5cm)
