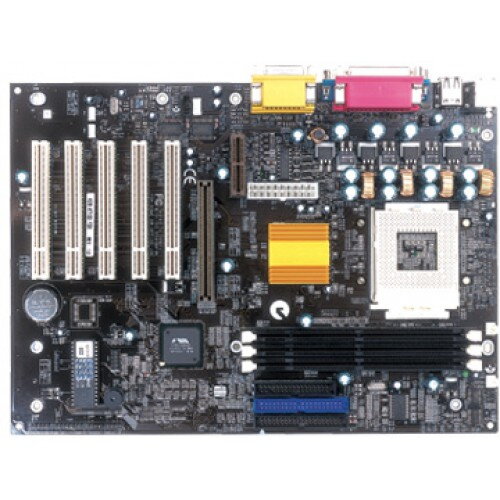

Mercury KOB KT133 FSX AMD K7 ATX Mainboard w/ VIA KT133 chipset

Description - AMD K7 Mainboard with VIA KT133 Chipset Design
Processors - 462 pin Socket A supports AMD Athlon?(K7) processors
* Full series of Athlon?processors including the newest Duron?and Thunderbird processors. (Can support the future 1.5GHz Thunderbird)
Chipset - VIA VT8363A (NB) amp; VT82C686B (SB)
* Support AGP 2.0 specification (4X)
- Super I/O - Integrated in VT82C686A (SB)
- System Hardware Monitor: Integrated in VT82C686A (SB)
- AC97 Audio Codec: Avance ALC100 (RealTek)
* Compliant with AC97 2.1 specification
System BIOS - Award 2Mb Flash EEPROM
- Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
- Full support for ACPI revision 1.0 specification
Memory - Three 168-pin DIMM sockets for 3.3V SDRAM (Ready for PC100, PC133)
- Maximum: 1.5GB
I/O Interface - Supports Plug and Play function
- PS/2 keyboard and PS/2 mouse connectors
- Four USB Ports (Two USB Connectors as header onboard)
- One - EPP/ECP mode parallel port
- Two - 16550 high-speed serial I/O ports
- Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port)
- Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 33/66/100)
- Supports 360K~2.88M Byte, 3 Mode FDDs or LS120
- ATX Power Supply Connector
- Ports, headers and others
* IrDA Cable header
* Extra USB header
* Green, HDD, power indicator LED headers
* CPU and Case Fan headers
* LAN Card Wake Up/Modem Ring Wake-Up headers
RTC amp; Battery - VT82C686A included 256 byte of CMOS SRAM
- With CMOS SRAM hardware clear jumper
Expansion Slots - 5 PCI slots, 1 AGP slot, 1 AMR slot
Form Factor amp; Layers - ATX (304mm x 220mm)
