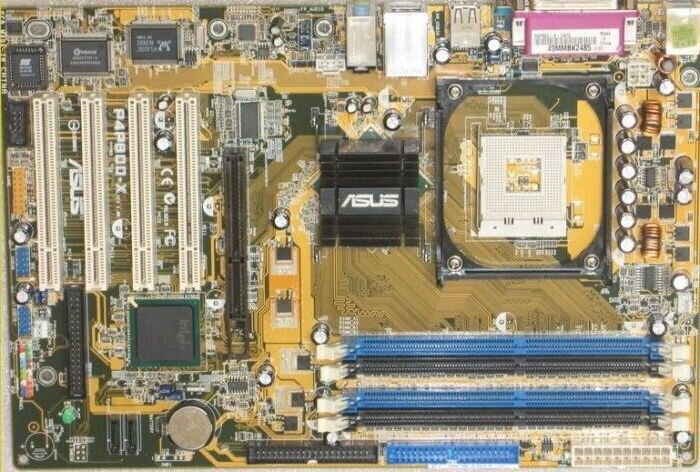

ASUS P4P800-X

Specifications
CPU
Socket 478 for Intel Pentium 4/Celeron

Intel Hyper-Threading Technology ready

Supports Intel Prescott CPU
Chipset
Intel 865PE

Intel ICH5
Front Side Bus
800/ 533/ 400 MHz
Memory
- Dual Channel Memory Architecture

- 4 x 184-pin DIMM Sockets support max. 4GB PCPC3200/2700/2100 non-ECC DDR SDRAM memory

- ASUS Hyper-Path Technology
Expansion Slots
1 x AGP8X/ 4X (0.8V, 1.5V only)

4 x PCI
Storage/RAID
2 x UltraDMA 100

2 x Serial ATA
Audio
ADI AD1888 SoundMAX 6-channel CODEC

support S/PDIF out interface
LAN
Realtek 8100C 10/100 Mbps Ethernet controller
Overclocking Features
AI Overclocking:

- Intelligent CPU frequency tuner

- ASUS JumperFree

- SFS (Stepless Frequency Selection) from 100MHz up to 400MHz at 1MHz increment

- Adjustable FSB/DDR ratio. Fixed AGP/PCI frequencies.

- ASUS C.P.R.(CPU Parameter Recall)
Special Features
Power Loss Restart

support S/PDIF out interface

Chassis Intrusion

ASUS EZ Flash

CrashFree BIOS 2
Back Panel I/O Ports
1 x Parallel

1 x Serial

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x SPDIF out

1 x Audio I/O

4 x USB 2.0

1 x RJ45
Internal I/O Connectors
2 x USB 2.0 connector support additional 4 USB 2.0 ports

CPU / Chassis FAN connectors

20 pin ATX Power connector

4 pin ATX 12V Power connector

Chassis Intrusion

S/PDIF out connector

CD / AUX audio in

Front Panel Audio connector

COM2 connector

GAME/MIDI connector
BIOS
3 Mb Flash ROM,AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME, Chassis Intrusion

ASUS LiveUpdate Utility

Form Factor
ATX Form Factor 12"x 8.2"(30.5cm x 20.8cm)
