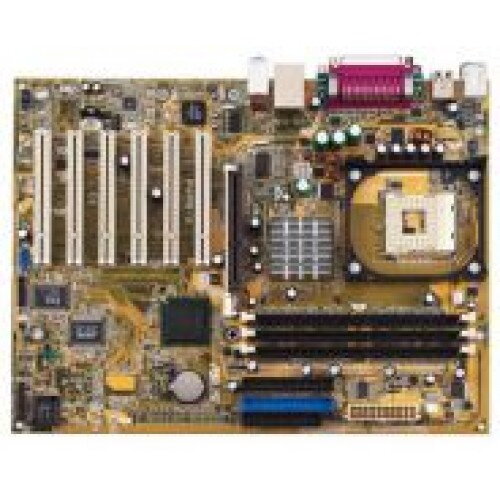

ASUS P4PE-X Socket 478 mainboard

Specifications
CPU
Socket 478 for Intel Pentium 4/Celeron

Intel Hyper-Threading Technology ready
Chipset
Intel 845PE

Intel ICH4
Front Side Bus
800(O.C)/533/400 MHz

Note:(A 800 FSB CPU requires a PC3200 DDR DIMM)
Memory
3x 184-pin DIMM Sockets support max. 2GB PC3200(O.C) /PC2700 / PC2100/ PC1600 non-ECC DDR SDRAM memory

Note:(Optain PC3200 DDR DIMMs only from ASUS qualified vendors list)
Expansion Slots
1 x AGP 4X

6x PCI
Audio
ADI AD 1980 SoundMAX 6-channel CODEC

S/PDIF out interface
LAN
BROADCOM 10/100 Mbps Ethernet controller
USB
Integrated 6 USB2.0 ports
Special Features
ASUS EZ Flash

Support S/PDIF out interface

ASUS C.P.R.(CPU Parameter Recall)

ASUS CrashFree-BIOS
Internal I/O Connectors
Front panel audio connector

1xUSB2.0 connector support additional 2 USB 2.0 ports

20-pin ATX power connector

4-pin ATX 12V power connector

CPU /chassis Fan connectors

SPDIF_OUT connector

Chassis Intrusion

CD/AUX/Modem audio in
Overclocking Features
ASUS JumperFree

CPU,Memory, AGP voltage adjustable

"SFS(Stepless Frequency Selection) from 100 MHz up to 230MHz at 1MHz increment "

Adjustable FSB/DDR ratio, Fixed AGP/PCI frequencies
Back Panel I/O Ports
1xPS/2 keyboard

1xPS/2 mouse

2xSerial

4xUSB

1xParallel

1xRJ45

1x Audio I/O
BIOS
2Mb Flash EEPROM

Award BIOS with enhanced ACPI,DMI,PnP,Green,TCAV

ASUS EZ Flash, ASUS C.P.R, SM BIOS 2.3, ASUS Crash-Free BIOS
Manageability
WOL by PME, WOR by PME
Support Disc
drivers

ASUS PC Probe

Trend Micro PC-cillin 2002 anti-virus software
Accessories
User's manual

UltraDMA cable

FDD cable

I/O shield
Form Factor
ATX

12.0"*9.0" (30.5cm*22.9cm)
