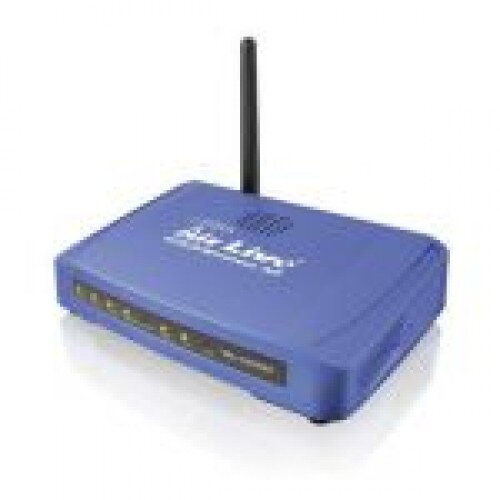

AirLive WL-5450AP 802.11g Multi-funkčný Wireless Access Point

Vlastnosti Bridge, Client, Repeater
Detachable Antenna, 2 LAN ports
802.1x, WPA, WPA2 and Web Mgt.
TX power regulation in 4 levels
Watchdog function use PING
Hardware 2 x 10/100Mbps LAN Port
1MB Flash, 8MB SDRAM
Reversed SMA Antenna Port
Power, LAN, WLAN LED indicators
Anténa 2 dBi odpojitelná dipólová anténa
Reversed SMA konektor
Frequency Range USA (FCC) 11 Channels: 2.412GHz~2.462GHz
Europe (ETSI) 13 Channels : 2.412GHz~2.472GHz
Rx Senstivity @ 25°C
IEEE 802.11b
Min (dBm)
1Mbps
-91
2Mbps
-89
5Mbps
-87
11Mbps
-86
IEEE 802.11g
Min (dBm)
6Mbps
-87
9Mbps
-87
12Mbps
-86
18Mbps
-84
24Mbps
-82
36Mbps
-78
48Mbps
-73
54Mbps
-70
Modulation Technique 11g Orthogonal Frequency Division Multiplexing (64QAM, 16QAM, QPSK,
BPSK)
11b Direct Sequence Spread Spectrum (CCK, DQPSK, DBPSK)
Data Rate: 54, 48, 36, 24, 18,11, 5.5, 2, 1 Mbps
Výstupní výkon 20dBm
Adjustable in 4 levels
Security 64/128-bit
802.1x Radius Support
Configuration Web Management
WDS (Bridge, Client, Repeater) mode
Hide ESSID
802.1x
MAC Access Control
MAC Access Table
SSID, Channel, RTS Threshold, Frag Threshold
Prostředí Prvozní teplota : 0~60℃
Prvozní vlhkost (bez kondenzace): 20~80%
Skladovací teplota : -20~65℃
Skladovací vlhkost : 95% Max
Zdroj DC12V
EMI FCC, CE
Váha (g) 180 g
Velikost
( L x W x H (mm) ) 135 x 100 x 26mm
