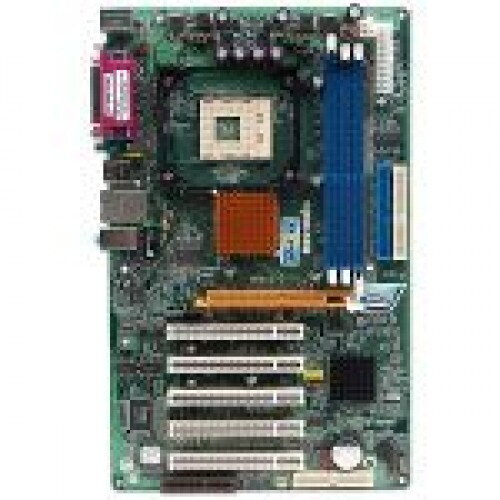

MATSONIC MS9127C Socket 478

SPECIFICATION
Processor
Support Socket 478 for Intel(R) Pentium(R) 4 1.5GHz~3.06GHz or faster Processor

Support Intel(R) Hyper-Threading Technology CPU

400/533MHz system interface speed
Chipset
VIA P4X400 North Bridge and VT8235 South Bridge chipsets.

8X V-Link 533MB/s high bandwidth North/South Bridge interconnect
Memory
Supports three 184-pin DDR DIMM maximum size up to 3GB

Support DIMMs of DDR400/DDR333/DDR266.
Graphics Adapter Slot
Supports AGP 3.0 Including 2X/4X/8x AGP Data Transfers .

Support Maximum AGP interface bandwidth 2.1GB/s.
Embedded USB2.0
480 Mbps data capacity

Backwards compatible with USB 1.1

Compliant with Intel!|s Enhanced Host Controller Interface

Specification Revision 0.95
Embedded LAN on board
10/100Mbps Fast Ethernet LAN on board

Supports IEEE 802.3 and 802.3u standards

Fully compliant ANSI X3.263 TP-PMD physical sub-layer
Audio
6 (5.1) channels audio output capability (compliant with AC'97 2.2 specifications)

Intel AC'97(Rev 2.2) compatible, meeting Microsoft's PC2001 requirements

CRL 3D: HRTF based DS3D compatible audio engine.
Two Ultra DMA IDE Ports
Supports two IDE ports up to 4 ATAPI devices

Supports up to PIO Mode 4 up to 16.6MBps, Multi Mode 4 up to 133MBps with bus mastering
Bus Architecture
One CNR slot for Soft modem riser only

Five 32-bit PCI slots with full master sharing controller (Rev 2.2 compliant)

One AGP 8x slot
I/O Interface
PS/2 Mini-DIN keyboard and mouse ports

Six USB ports

(four backpanel ports, onboard USB headers providing two extra ports)

Two D-SUB 9-pin male serial ports

One D-SUB 25-pin female Printer port

Audio Line-out, Line-in and Mic-in jacks
System BIOS
2MB Flash Rom on board, provides complete Advances Configuration Power

Interface (ACPI) and Legacy PMU

Fully compliant to PC'97 and PC'98 Spec
Form Factor
304mm x 190mm, 4 Layers

ATX form factor

+I/O shield krytka
