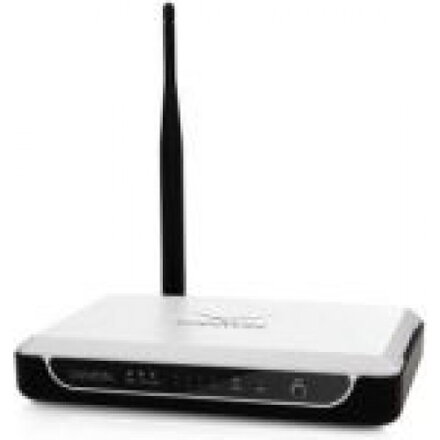

Canyon CNP-WF514N1A

Processor
CPU
Atheros AR7240+AR9285
Memory
Installed Buffer Memory Storage Capacity
32 MB
Installed Flash Memory Storage Capacity
4 MB
Networking Specifications
Data Link Protocol Supports
Fast Ethernet/Ethernet

IEEE 802.11b/g/n
Local Area Network Architecture
10Base-T/100Base-TX

Wireless
Data Bit Rate
150 Mbps
Network/Transport Protocol
ICMP

PPPoE

PPTP

TCP/IP

DHCP

UPnP

DDNS
LAN Management Protocol Supported
Web Interface
Status Indicator
Link Status
Line Modulation Type
16QAM

64QAM

BPSK

CCK

DBPSK

DQPSK

OFDM

QPSK
Max. Range Indoors
100 m
Max. Range Open Space
300 m
Encryption Algorithm
128-bit WEP

152-bit WEP

64-bit WEP
Networking Compliant Standards
IEEE 802.11b

IEEE 802.11g

IEEE 802.3

IEEE 802.3u

IEEE 802.11n
Networking Features
DHCP Client Built-in

NAT Support

VPN Support

WPA (Wi Fi Protected Access) Support
Antenna
External
Device Location
External
Mounting Capability
Desktop
Interface Provided
Ethernet 10Base-T/100Base-TX Port Quantity
4
Ethernet 10Base-T/100Base-TX Port Connector Type
RJ-45
WAN Ethernet 10Base-T/100Base-T Port Quantity
1
WAN Ethernet 10Base-T/100Base-T Port Connector Type
RJ-45
Antenna Connector Quantity
1
Power
Power Device Location
External
Dimensionsamp;Weight
Nominal Weight
0.45 kg
External Color
White
Environment
Maximum Operating Ambient Temperature
40 °C
Maximum Operating Humidity
90 %
Minimum Operating Ambient Temperature
10 °C
Minimum Operating Humidity
10 %
Warranty
Warranty Products returnable
Yes
Warranty Term (month)
24 month
Warranty validation Criteria
Serial Number
Logistic
Pack Depth (mm)
70 mm
Pack Width (mm)
260 mm
Pack Height (mm)
165 mm
Pack Weight Brutto (kg)
0.6 kg
Pack Weight Netto (kg)
0.54 kg
Pieces in pack
1
Box Depth (mm)
540 mm
Box Width (mm)
315 mm
Box Height (mm)
380 mm
Box Weight Brutto (kg)
13 kg
Packs in Box
20
EAN Code
8717371852597
