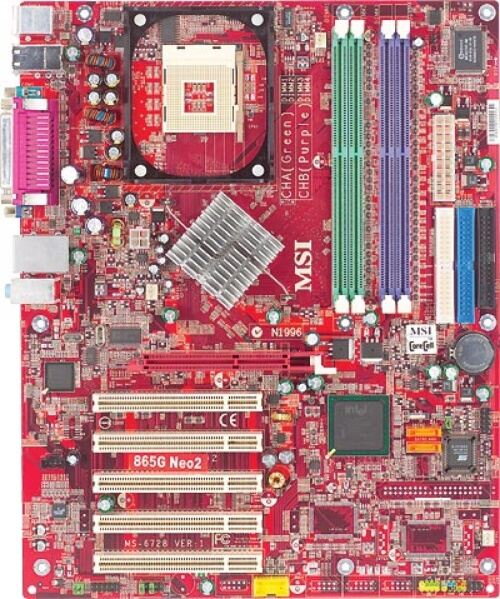

MSI 865G Neo2-PLS/ PFS Socket 478 zakladna doska

CPU
Supports Intel® P4 Northwood/Prescott/P4 Extreme Edition processors.(Socket 478)

FSB 400 (for Northwood only), 533, 800MHz.

Supports up 3.4GHz/800MHz and higher speed
Memory Speed/CPU FSB Support Matrix

FSB\Memory clock
DDR266
DDR333
DDR400
800 MHz
YES
YES*
YES
533 MHz
YES
YES
NO
400 MHz
YES
NO
NO
*Note: While using DDR333 with 800MHz FSB the memory will run at 320MHz.



Chipset
Intel® 865G Chipset

- Supports FSB 800/533/400(Northwood only)MHz.

- Integrated graphic controller.

- Supports AGP 8X interface.

- Supports Dual Channel DDR 400/333/266 memory interface.





Intel® ICH5 Chipset

- Hi-Speed USB (USB2.0) controller, 480Mb/sec, 8 ports.

- 2 Serial ATA/150 ports.

- 2 channel Ultra ATA 100 bus Master IDE controller.

- PCI Master v2.3.

- Supports both ACPI and legacy APM power management.



Main Memory



Supports four unbuffered DIMM of 2.5V DDR DRAM.

Supports up to 4GB memory size without ECC.

Supports Dual channel DDR266/333/400/433/466/500/533 MHz and up. (DDR433/466/500/533 are overclocking spec)



Slots



One AGP slot supports 8x/4x at 0.8V (AGP 3.0) or 4x at 1.5V (3.3V is not supported).

Five 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface).



On-Board IDE



Dual Ultra DMA 66/100 IDE controllers integrated in ICH5.

- Supports PIO, Bus Master operation modes.

- Can connect up to four Ultra ATA drives.



Serial ATA/150 controller integrated in ICH5.

- Up to 150MB/sec transfer speeds.

- Can connect up to two Serial ATA drives.



Audio



6 channels software audio codec Realtek ALC655.

- Compliance with AC97 v2.3 Spec.

- Meet PC2001 audio performance requirement.



LAN
Realtek® 8100C / 8110S

- Integrated Fast Ethernet MAC and PHY in one chip.

- Supports 10Mb/s, 100Mb/s and 1000Mb/s (1000Mb/s for 8110S only).

- Compliance with PCI 2.2.

- Supports ACPI Power Management.



On-Board Peripherals
On-Board Peripherals include:

- 1 floppy port supports 1 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

- 1 serial port (COM A)

- 1 VGA port

- 1 parallel port supports SPP/EPP/ECP mode

- 8 USB 2.0 ports (Rear x 4 / Front x 4)

- 1 Line-In / Line-Out / Mic-In / Real Speaker Out / Center-Subwoofer Speaker Out / SPDIF

Out-Optical audio port

- 1 RJ45 LAN jack
MSI Reminds You...

The floppy disk cable will be optional.


BIOS
 The mainboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.

The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.



Dimension
30.5 cm(L) x 24.5 cm(W) ATX Form Factor
Mounting
9 mounting holes.
