283983-001 Intel 845 Socket 478 mATX Motherboard w/Video, Audio & LAN

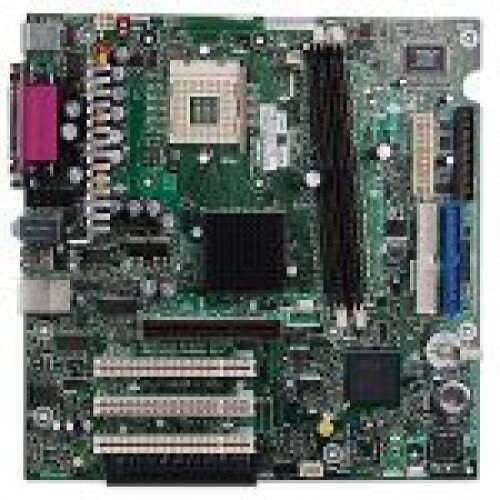

Compaq 283983-001 Intel 845 Socket 478 mATX Motherboard



General Features:
Intel 845 chipset
Socket 478
mATX form factor
Supports up to 2 GB PC-3200 (400 MHz) DDR memory
Integrated video
Integrated audio
Integrated Ethernet
Two (2) IDE controllers
One (1) Floppy controller



Expansion Slots:
One (1) AGP slot
Three (3) PCI slots
Two (2) 184-pin DIMM sockets



I/O Ports:
Two (2) PS/2 ports
One (1) 9-pin serial port
One (1) 15-pin VGA port
One (1) 25-pin parallel port
Four (4) USB ports on rear
One (1) USB port via header
One (1) RJ-45 Ethernet port
Three (3) Audio ports



Supported Processors:
Intel Pentium 4 and Celeron processors up to 3.06 GHz
400/533 Front Side Bus



Regulatory Approvals:
UL
Package Includes:
Compaq 283983-001 Intel 845 Socket 478 mATX Motherboard only
Additional Information:


Notes:
Model: 283983-001
CPU retension is not included



Product Requirements:
ATX case
ATX power supply
Supported processor
Supported RAM
IDE and floppy cables
I/O Shield
The rest of the system
