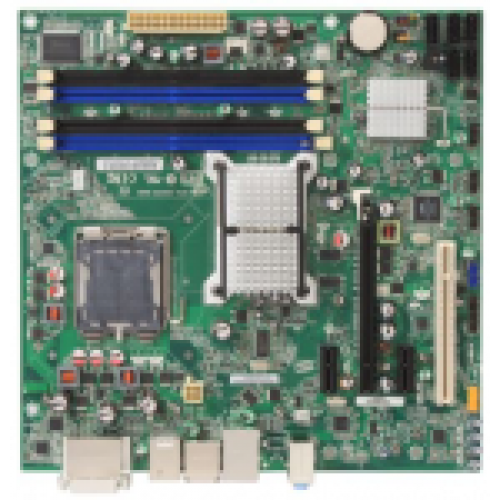

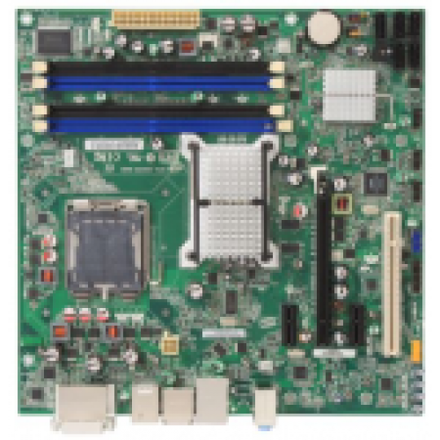

Intel DQ45CB

Features and benefits
Form Factor
MicroATX (9.60 inches by 9.60 inches [243.84 millimeters by 243.84 millimeters])
Processor
Click View supported processors for the most current list of compatible processors.
At product launch, this desktop board supports:
Support for an Intel® Core™2 Quad processor in an LGA775 socket
Support for an Intel® Core™2 Duo processor in an LGA775 socket
Support for an Intel® Pentium® processor in an LGA775 socket
Support for an Intel® Celeron® processor in an LGA775 socket
Support for an Intel® Celeron® processor 400 sequence in an LGA775 socket
Memory
Four 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) socket
Support for DDR2 800/667 MHz DIMMs
Support for up to 8 GBΣ of system memory
Audio
Intel® High Definition Audio subsystem in the following configuration:

5.1 audio subsystem using the ADI AD1882 audio codec
Video
Intel® Graphics Media Accelerator 4500 onboard graphics subsystem with integrated DVI-I and DVI-D graphics output
LAN Support
Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel® 82567LM Gigabit Ethernet Controller
Peripheral Interfaces
Up to 12 USB 2.0 ports
Six Serial ATA 3.0 Gb/s ports, including 1 eSATA back port with RAID 0, 1, 5, 10 support
Two IEEE-1394a ports (1 external port, 1 internal header)
One serial port via header
Expansion Capabilities
One PCI Conventional* bus add-in card connector
Two PCI Express* x1 bus add-in card connectors
One PCI Express* 2.0 x 16 bus add-in card connector
