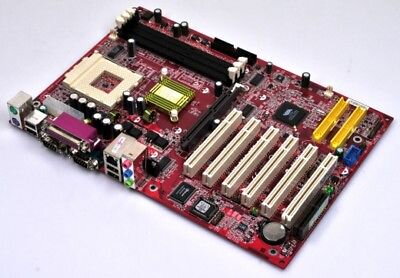

MSI KT4V

Detail Specification
The Specification may change without notice. The actual products sold are different from areas. Please check the detailed Specification with your local dealers.
Basic Specification
|
Detail Specification
CPU
• Supports Socket A (Socket 462) for AMD® Athlon™ XP/Athlon™/Duron™ processor

• Supports up to Athlon™ XP 2800+ processor



Chipset
• VIA® KT400 Chipset

- FSB @200/266/333 MHz

- Supports DDR200/266/333/400 memory

- AGP 8X and PCI advanced high performance memory controller.



• VIA® VT8235 Chipset

- Integrated Direct Sound AC'97 audio

- Dual channel Ultra DMA 33/66/100/133 master mode EIDE controller

- ACPI PC2001 compliant enhanced power management

- Integrated USB 2.0 controller



FSB
100/133/166(200/266/333)MHz clocks are supported.





Memory Speed/CPU FSB Support Matrix



FSB
DDR266
DDR333
DDR400
200MHz
Yes
Yes
NO
266MHz
Yes
Yes
Yes (Note)
333MHz
NO
Yes
Note
Note: User may try this combination, but MSI will not guarantee its functionality.

Note: To know which DDR module is compatible with the mainboard, see Recommended DDR400 Modules.





Main Memory
• Supports six memory banks using three 184-pin DDR DRAMs.

• Supports up to 3GB memory size.

• Supports DDR400*/DDR333/DDR266/DDR200 DRAM

• No support ECC Function.



* DDR400 memory support by MSI certified module only

* The tested and qualified DDR400/PC3200 DIMMs are listed below:
Vendor
MemTest

v2.0

30Min.
CC Winstone

V1.0.1

1 time
3D Mark

2001 SE

Demo 6 hrs
Xcopy x2+

Speedy +VCD play

6 hrs
Samsung 256M

(K4H560838D-TCC4)x1
OK
OK
OK
OK
Micron 128M

MT46V16M8TG-5ESB)x1
OK
OK
OK
OK
TwinMos Winbond 256M

(W942508BH-5)x1
OK
OK
OK
OK
TwinMos 256M

(TMD7608F8E50B)x1
OK
OK
OK
OK
Winbond 256M

W942508BH-5)x1
OK
OK
OK
OK
ADATA Winbond 256M

(W942508BH-5)x1
OK
OK
OK
OK
Kingston Winbond 256M

(W942508BH-5)x1
OK
OK
OK
OK
Samsung 512M

(K4H560838D-TCC4)x1
OK
OK
OK
OK
Apacer Winbond 512M

(W942508BH-5)x1
OK
OK
OK
OK
Winbond 512M

(W942508BH-5)x1
OK
OK
OK
OK
TwinMos Winbond 512M

(W942508BH-5)x1
OK
OK
OK
OK
TwinMos 512M

(TMD7608F8E50B)x1
OK
OK
OK
OK
Corsair CMX256A-3200C-2

XMS 3200 V:1.1 256M
OK
OK
OK
OK
Winbond 512M

(W942508BH-5)x1
OK
OK
OK
OK


Slots



• One AGP (Accelerated Graphics Port) 1.5V 8x/4x slot

• Six 32-bit PCI bus slots (support 3.3v/5v PCI bus interface)

• One CNR (Communication Network Riser) slot



On-Board IDE



• An IDE controller on the VT8235 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA133/100/66/33 operation modes

• Can connect up to four IDE devices



Audio



• RealTek ALC650 6-channel audio
