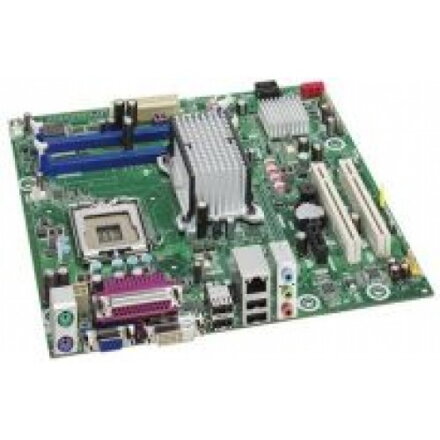

Desktop Board DQ43AP

Features and benefits
Form factor
MicroATX (9.60 inches by 9.60 inches)
Processor
View supported processors for the most current list of compatible processors.



At product launch, this desktop board supports:
Intel® Core™2 Quad processor in an LGA775 socket
Intel® Core™2 Duo processor in an LGA775 socket
Intel® Pentium® processor in an LGA775 socket
Intel® Celeron® processor in an LGA775 socket
Memory
Two 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR2 800/667 MHz DIMMs
Support for up to 8 GBπ of system memory
Chipset
Intel® Q43 Express Chipset
Audio
Intel® High Definition Audio subsystem in the following configuration:



5.1 audio subsystem using the Realtek* ALC662 audio codec
Video
Intel® Graphics Media Accelerator 4500 onboard graphics subsystem with integrated DVI and VGA graphics output
LAN support
Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the ENERGY STAR*-ready Intel® 82567LM Gigabit Ethernet Controller
Peripheral interfaces
Eight USB 2.0 ports
Three Serial ATA 3.0 Gb/s ports, including one eSATA port
One parallel port
Two PS/2 ports
Expansion capabilities
Two PCI Conventional bus add-in card connectors
One PCI Express* x1 bus add-in card connectors
Additional features
Intel® Standard Manageability
Intel® Trusted Platform Module
Intel® Fast Memory Access
